NOTICE:

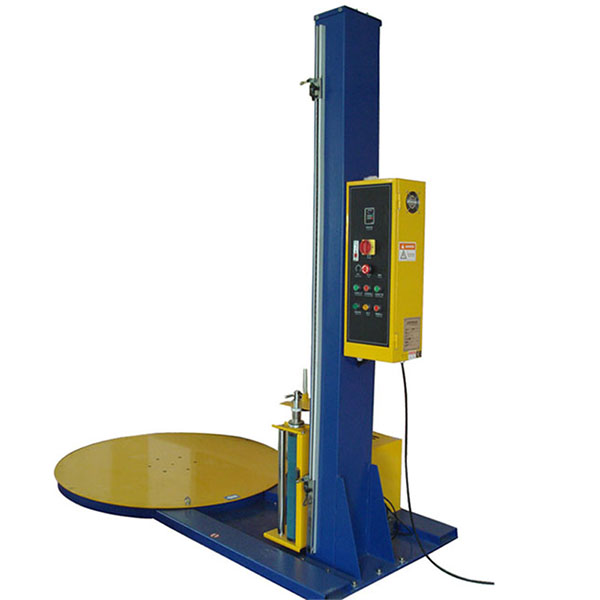

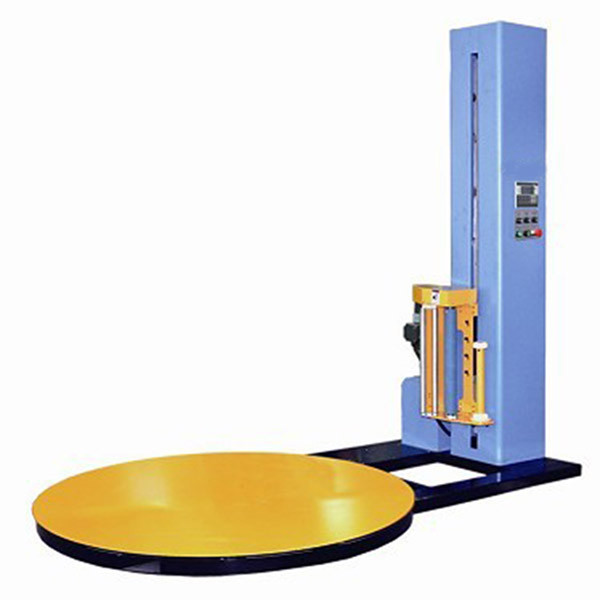

1. XT4502 Automatic Stretch Film Pallet Wrapping Machine adopts Contractors as its Control system.
2. Turntable speed is adjustable
3. Film carriage is mechanical brake.
4. Precise phase stopping at cycle end
5. Top and bottom limit switches to find pallet height
6. XT4502 Automatic Stretch Film Pallet Wrapping Machine also designed with Manual control
|
Machine size |
(L×W×H):2550×1500×2500mm |
|
Machine weight |
530kg |
|
Wrapping height |
2100 mm |
|
Turntable diameter |
1500mm |
|
Turntable height |
80mm |
|
Turntable load weight |
Max2000kg |
|
Film size |
W: 500mm thickness: 12-35Microns |
|
Diameter of film |
Inner diameter:76mm external diameter: Max350mm |
|
Turntable speed |
0-10cycles/min(adjustable) |
|
Power |
1.2kw/380V 3phase |
