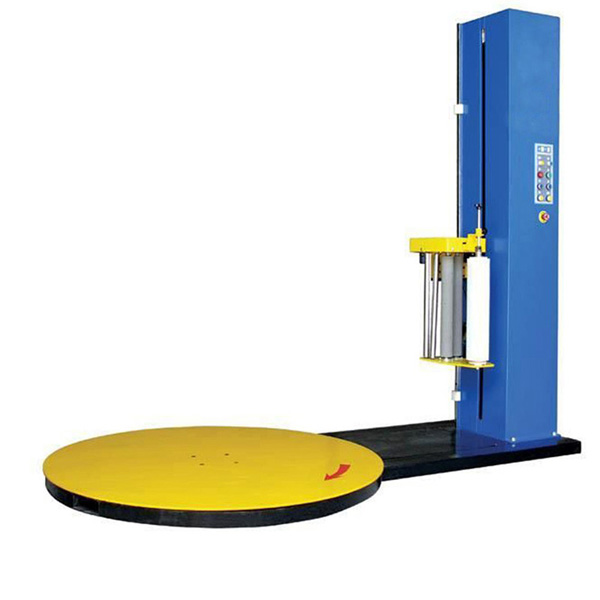

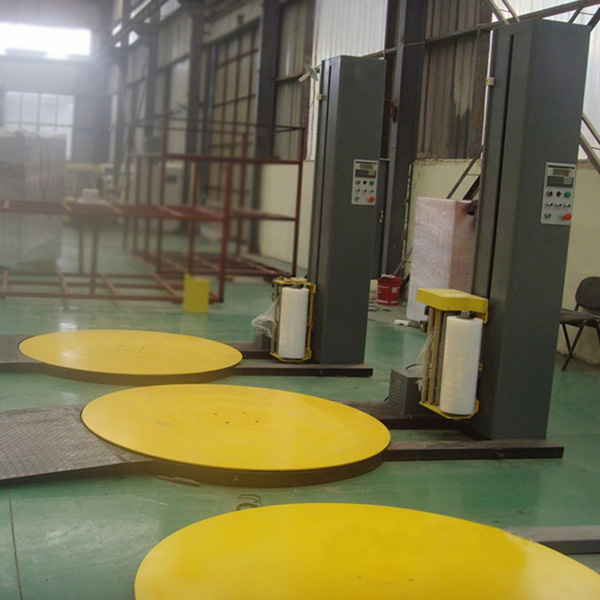

FY2000 pallet stretch wrapping machine is used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
|
Wrapping size(L*W) |
(500-1200)mm*(500-1200)mm |
|
Packing height |
L type: (500-2000)mm |
|
|
H type: (500-2400)mm |
|
|
Y type: (500-higher than 2400)mm |
|
Packing efficiency |
20-40 loads/hour |
|
Turntable speed |
0-12rpm |
|
Turntable diameter |
Diameter: 1650mm height: 85mm |
|
Turntable loading(max) |
2000kg |
|
Up-down frame |
Double-chain, Up-down speed variable |
|
Film carriage |
Pre-stretch |
|
Control system |
PLC |
|
Machine weight(max) |
700kg |
|
Machine size |
2650mm*1650mm*2400mm |
|
Packing size |
2650mm*1650mm*700mm |
|
Electrics |
Single-phase 220V/50Hz |
|
Power |
Turntable: 0.75kw, film carriage: 0.3kw, up-down: 0.4kw |
