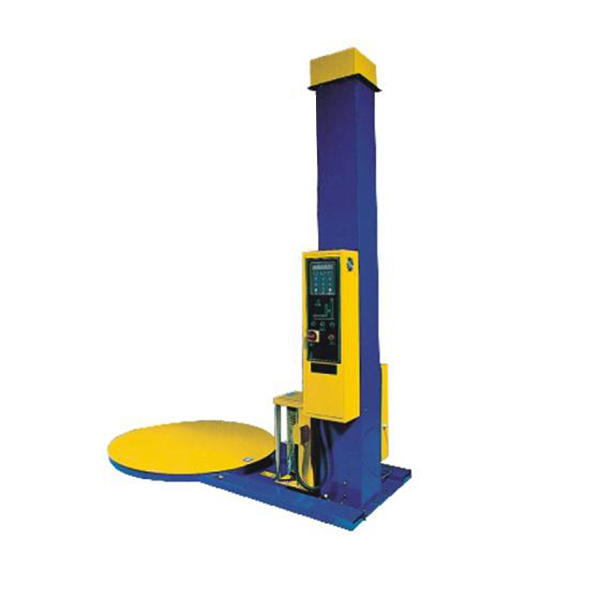

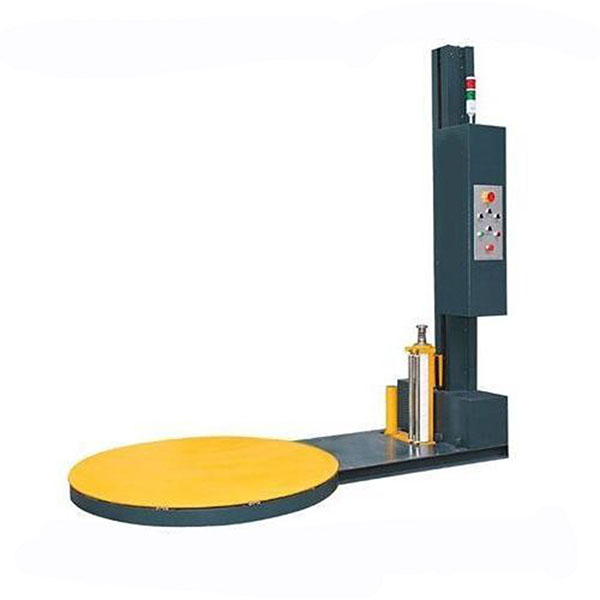

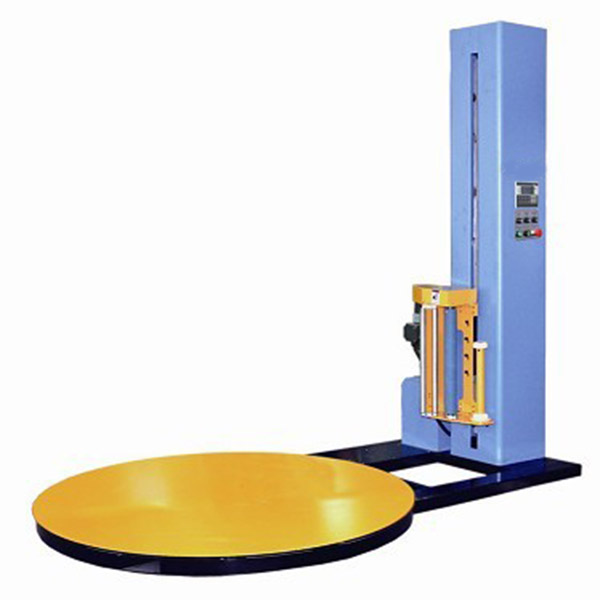

YK1650F Pre-stretch Automatic Pallet Wrapping Machine

Introduction of YK1650F Pre-stretch Automatic Pallet Wrapping Machine

1.YK1650F Pre-stretch Automatic Pallet Wrapping Machine has PLC control
2.Photo-eye auto-height sensing pallet height
3.Pre-stretch device feeding film automatically
4.Pre-stretch can reach 250%,reduce film consumption
5.Separate top, bottom & up-down wrap counter options
6.Film tension control adjustment on the panel
7.Variable turntable speed; carriage up/down speed control
8.Manual/automatic exchangeable

Structure of YK1650F Pre-stretch Automatic Pallet Wrapping Machine

Control System
* PLC control
*Photo-eye auto-height sensing pallet height
*Separate top ,bottom & up-down Wrap Counter options
*Overwrap time is up to create an overwrap
*Reinforce wrap times is set to better secure 2 loads placed on top of each other
*Film Tension Control adjustment on the panel
*Separate start, pause and emergency stop buttons
*Manual carriage up/down
*Variable Turntable Speed
*Carriage up/down speed control
*Manual/automatic exchangeable

Turntable
*1650mm Diameter Structural steel plate
*85mm Height floor to top of turntable

Turntable drive
*0-12rpm variable turntable speed by frequency changer
*Position turntable alignment
* works under speed 0.75 kw motor with reduction gearbox ,Soft start
 Film carriage
*Powered pre-stretch system up to 250% to min film consumption
*Carriage door opens for effortless roll change and thread film
*Film delivery variable speed by separate DC Drive Motor
*Electronic film tension control adjustment on panel
*Film dancer-bar with variable speed output

Film carriage Drive
*Heavy duty double-chain carriage lift, calm and safety
*Film carriage variable speed by frequency changer

*works under 0.23 kw motor with reduction gearbox
