Position: Home » Product List » Plastic Wrapping Machine » YK1650CS Top Plate Auto Pallet Wrap Machine
  • YK1650CS Top Plate Auto Pallet Wrap Machine
  • YK1650CS Top Plate Auto Pallet Wrap Machine
  • YK1650CS Top Plate Auto Pallet Wrap Machine

YK1650CS Top Plate Auto Pallet Wrap Machine

YK1650CS Top Plate Auto Pallet Wrap Machine adopted advanced Photo-eye auto-height sensing system to adjust pallet height. Separate top ,bottom & up-down &reinforcement Wrap Counter Selector0-9.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of YK1650CS Top Plate Auto Pallet Wrap Machine

YK1650CS Top Plate Auto Pallet Wrap Machine adopted advanced Photo-eye auto-height sensing system to adjust pallet height. Separate top ,bottom & up-down &reinforcement Wrap Counter Selector0-9.

Features of YK1650CS Top Plate Auto Pallet Wrap Machine

*PLC control

*Over-wrap count to create a cover

*Reinforce wrap count to keep goods stable

*Film Tension Control adjustment on the panel

*Separate start, pause and emergency stop buttons

*Manual carriage up/down control

*Variable Turntable Speed control
*Carriage up/down speed control

Parameter of YK1650CS Top Plate Auto Pallet Wrap Machine

Turntable diameter

1650mm

Turntable speed

0-12rpm

Turntable Height

85mm

Turntable weight capacity

2000kg

Power supply

220V 50/60HZ 1Phase (standard)

Air consume lever

0.6-1.0Mpa

Wrapping Height

1000-1800mm

Packing efficiency

20-40 loads / hour

Material

LLDPE  - Stretch Film

Film Thickness

17-35 µm

Film Width

500 mm

Core Diameter

76.2 mm

Machine weight

650 / 700kg

Machine dimention

2450mm*1500mm*2750mm

Package Dimention

2845mm*1650mm*1150mm

Maximum Film. Diameter

260 mm

Max. weight of film roll

15 kg

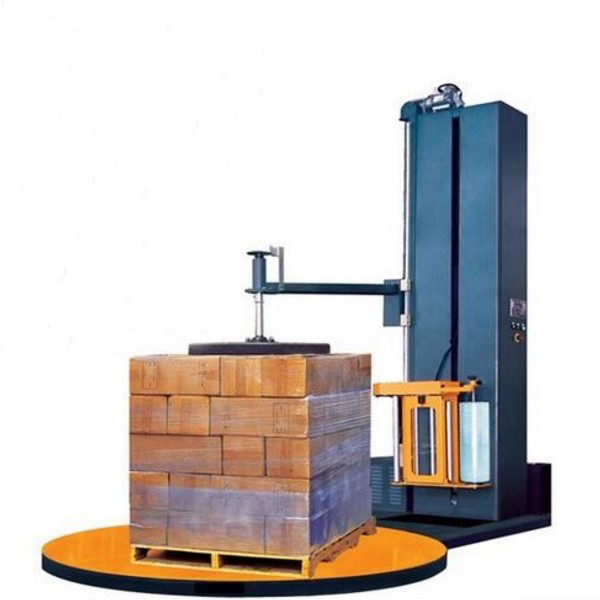

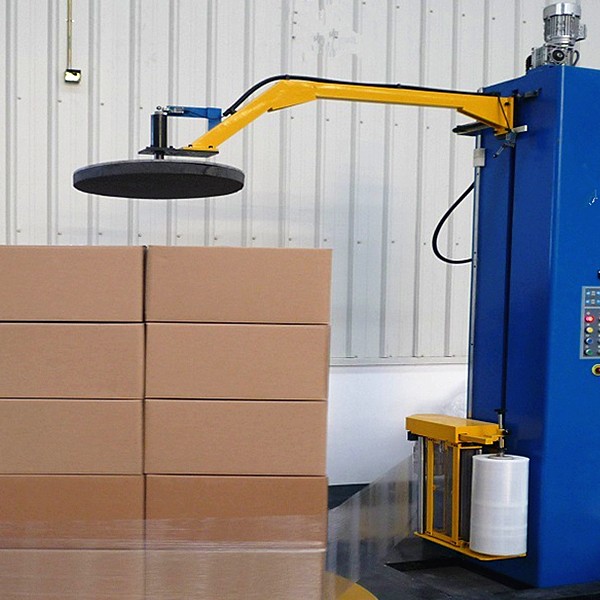

Pictures of YK1650CS Top Plate Auto Pallet Wrap Machine
