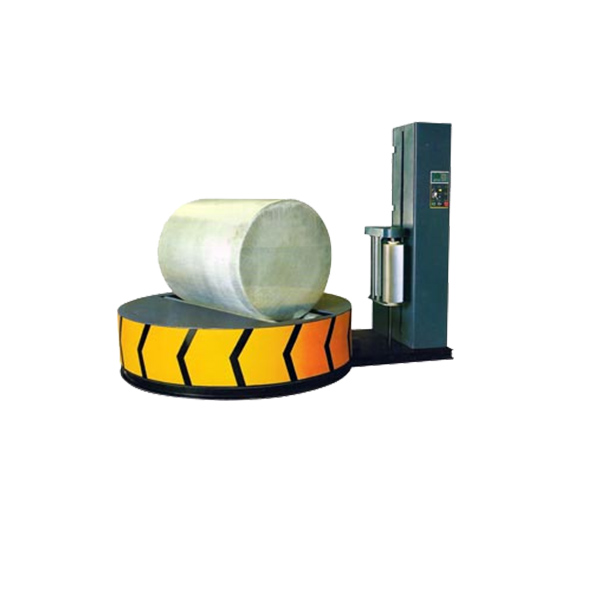

Yp2000f Automatic Paper Roll Film Wrapping Machine

Yp2000f Automatic Paper Roll Film Wrapping Machine is controled by PLC, and equipped with Human Machine Interface, Easy to operate Features of Yp2000f Automatic Paper Roll Film Wrapping Machine The r

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Yp2000f Automatic Paper Roll Film Wrapping Machine

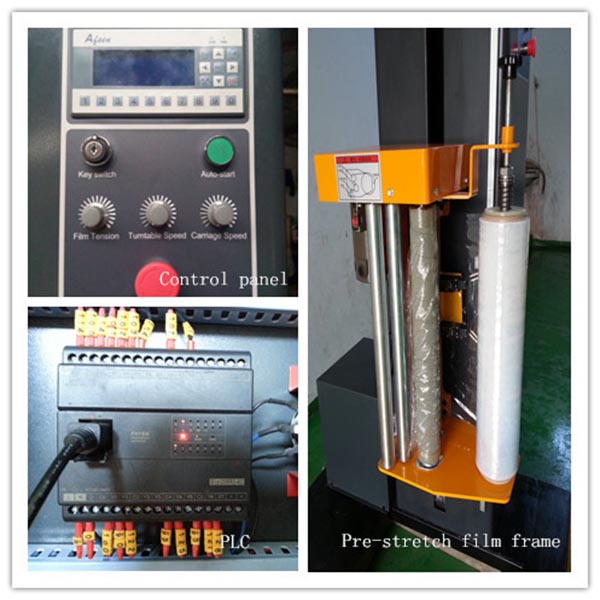

Yp2000f Automatic Paper Roll Film Wrapping Machine is controled by PLC, and equipped with Human Machine Interface, Easy to operate

Features of Yp2000f Automatic Paper Roll Film Wrapping Machine

The ring number of twisting is adjustable

Soft start and stop

The film carriage for dynamic pre-stretching mechanism, stretching up to 250%, reduces the film consumption. (Stretch ratio can be specially made according your requirements.)

The film frame rising and falling speed is adjustable.

Film feeding speed is adjustable, controlled by separate DC motor

The lifting column is double chains structure, stable and reliable.

The film frame is the pure aluminum film frame, light and stable.

Selection of wear resistant rubber roller, long service life.

Home position: the turntable always stops at the same position.

Adjustable pallet height photo sensor

Secure Top Sheet Function

Audible warning when running a cycle

Parameter of Yp2000f Automatic Paper Roll Film Wrapping Machine

Model

YP2000F

Paper roll diameter

500mm-2000mm(can be customize)

Paper roll width

500mm-2200mm(can be customize)

Max.load height

2400mm(option2800mm/3000mm)

Max.loading weight

2000kg(option2500kg/3000kg)

Film Carriage

Open door type film carriage,easy to replace the new film when used before.

Carriage

Pre-stretch up to 250-300%

Machine Specification

Turntable rotation speed

3-12rpm/min  adjustable

Turntable diameter

2000mm

Turntable roller center distance

420mm

Turntable height

460mm(standard)

Carriage up&down speed

adjustable

Voltage

220V/380V 1Ph/3Ph

Power

2KW 50HZ/60HZ

Efficiency

20-40loads/hour

Machine Size(L*W*H)

3025mm*2000mm*2260mm(Standard)

Machine weight

1080kg

Film roll detail

Max.external diameter

230mm

Internal diameter

76mm

Width

500mm

Thickness

17-35um

Option

Paper roll reject system

Top platen system

Turntable slew bearing drive

Pictures of Yp2000f Automatic Paper Roll Film Wrapping Machine
