NOTICE:

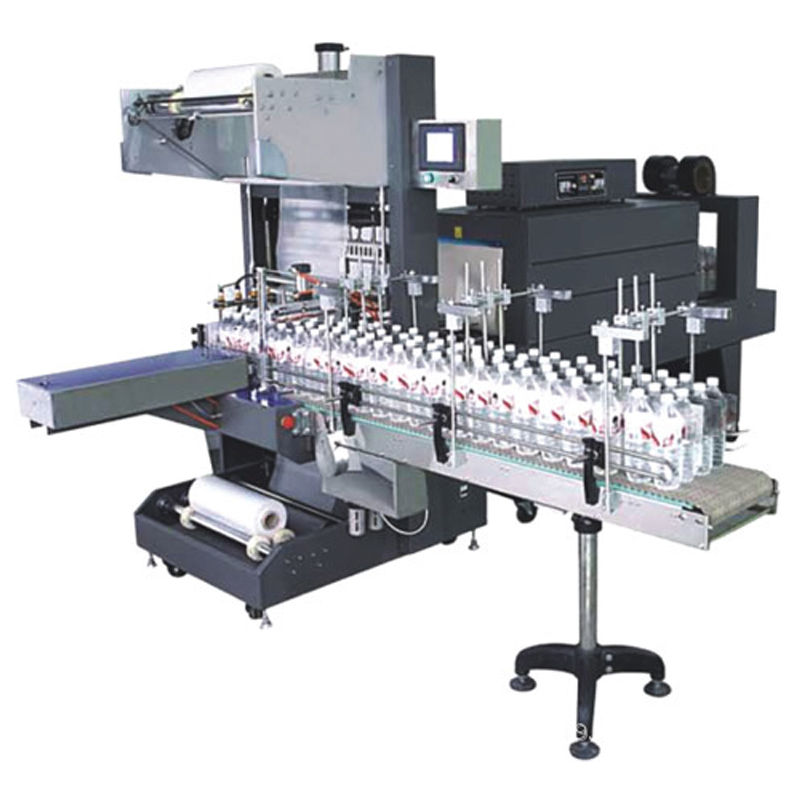

The QSJ-5040A Automatic Sleeve Wrapper Bottle Packing Machine+BSE-5040A Heat Shrink Tunnel Machine adopts the advanced touch screen which makes operation easier,‘Omron’ programmable logic controller (PLC) and AC contactor, ‘AirTAC’ cylinder, and all the rest parts adopt international famous brand.
Upper and down electromagnetic switch prevents sealing mistakes, and protect operator. Automatic alarm security system protects machine and operator.
Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
Super cooling system cools the packing and makes the figuration perfectly.
|
Model |
QSJ-5040A |
Model |
BSE-5040A |
BSE-6040A |
|
Power source |
3phase 380V 50HZ |
Power source |
220V/380V-460V 50-60HZ 3phase |
220V/380V-460V 50-60HZ 3phase |
|
Power |
3KW |
Heater power |
20KW |
20KW |
|
Capacity |
0-8 packs/min |
Conveyer speed |
0-10m/minute |
0-10m/minute |
|
Working air pressure |
0.4 -0. 6 MPa |
Tunnel size(L*W*H) |
1500*500*460mm |
1500*600*460mm |
|
Width/thickness of the film |
Max. 590mm/0.03 - 0.25mm |
Conveyer loading |
30KGS Max. |
30KGS Max. |
|
Max. packing dimension(L*W*H) |
420*300*350mm |
Machine size(L*W*H) |
2500*820*1680mm |
2500*920*1680mm |
|
Min. packing dimension(L*W*H) |
250*50*100mm |
Machine weight |
470KGS |
500KGS |
|
Conveyor driver size (L*W*H) |
900*306*800mm 1700*306*800mm |
Shrink film |
PE,POF,PVC,PP |
PE,POF,PVC,PP |
|
Machine size(L*W*H) |
1060*1600*1930mm |
|
|
|
|
Machine weight |
370KGS |
|
|
|
