NOTICE:

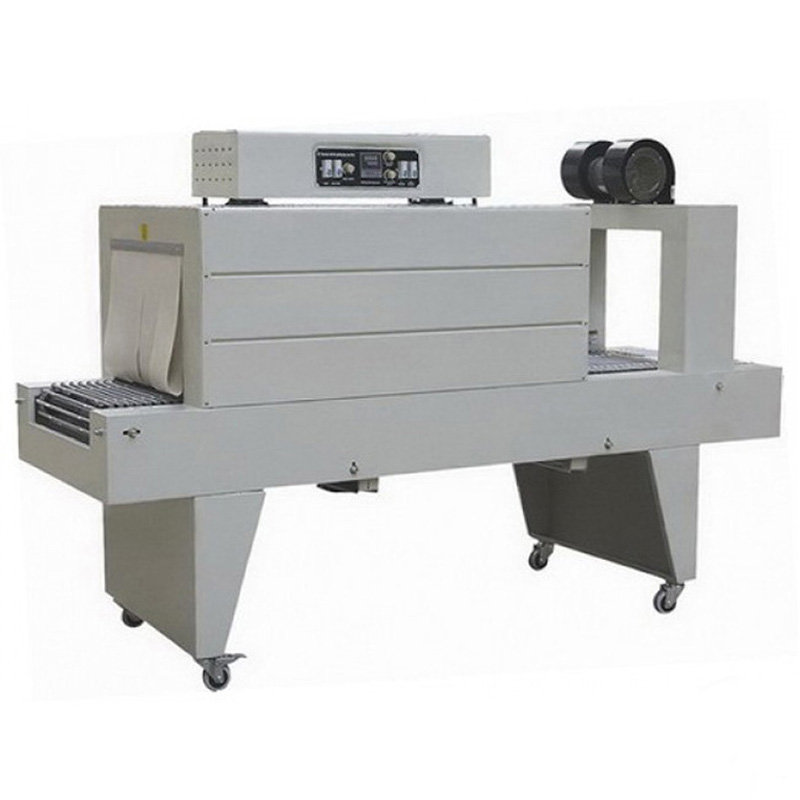

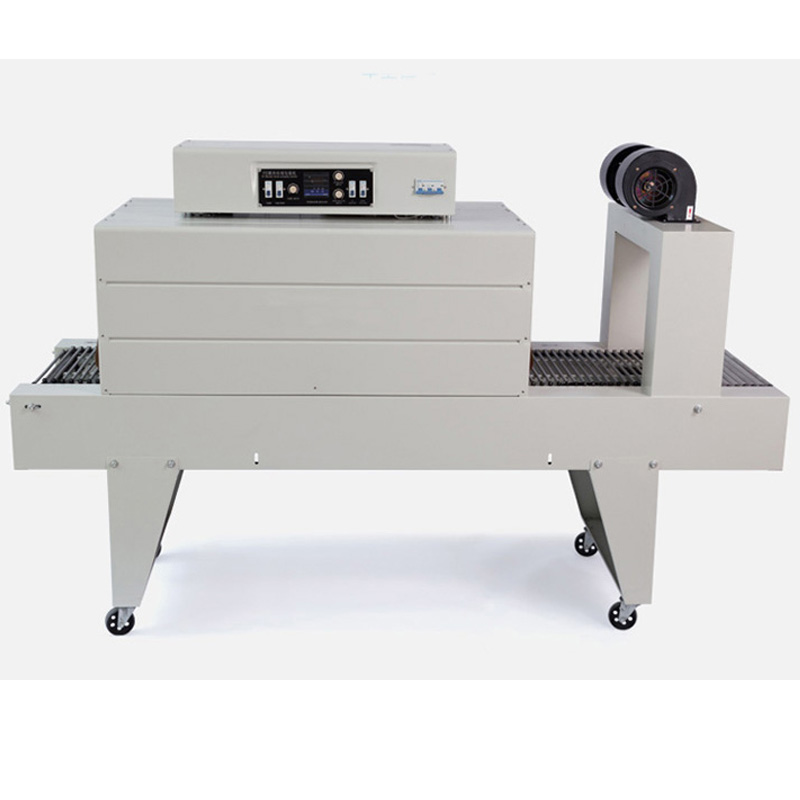

1.BSE4535 PE Film Packaging Shrink Tunnel Machine is designed especially for PE shrink film.
2.However this shrink tunnel machine is suitable for other types shrink films.
3.The shrink tunnel machine adopts digital temperature controller, which makes operation easier.
4.Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel.
5.Two fans in electricity box cools down electricity box in order to protect electronics.
6.Conveyor motor cools down by fan underneath.
7.The powerful fan produces even hot airflow inside of shrink tunnel.
8.The speed of the conveyor is adjustable.
9.Conveyor has option of chain roller and iron net conveyor for choice.
Model |
BSE4535 |
BSE5038 |
BSE6040 |
Power supply |
3phase 220V/380V 460V 50-60HZ |
||
Heater power |
18KW Adjustable |
19KW Adjustable |
20KW Adjustable |
Conveyer speed |
0-10m/minute |
||
Tunnel size(L*W*H) |
1200*450*350mm |
1200*500*380mm |
1800*600*400mm |
Conveyer loading |
Max. 25Kgs |
Max. 25Kgs |
Max. 25Kgs |
Machine size |
2200*730*1440mm |
2200*780*1470mm |
2800*880*1570mm |
Machine weight |
220KG |
250KG |
285KG |
