BS-B400 Wrapping Heat Shrink Tunnel Machine

BS-B400 Wrapping Heat Shrink Tunnel Machine is suitable to shrink thin shrink films such as POF, PVC, PP, POP, etc

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of BS-B400 Wrapping Heat Shrink Tunnel Machine

1.BS-B400 Wrapping Heat Shrink Tunnel Machine is suitable to shrink thin shrink films such as POF, PVC, PP, POP, etc with far-infrared radiation.
2.The thickness of shrink film should be in the range of 0.01-0.04 mm.
3.Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel.
4.The temperature of the shrink room and the speed of the conveyer are adjustable.
5.And the size of shrink tunnel can be customized.
6.Conveyor has option of chain roller and iron net conveyor for choice.

Parameter of BS-B400 Wrapping Heat Shrink Tunnel Machine

Model

BS-B400 Wrapping Heat Shrink Tunnel  Machine

Power source

380V/3phase 50-60Hz

Power

7.5KW

Conveyor speed

0-10m/min

Tunnel size

830*400*200mm

Conveyor loading

5kg

Machine size

1250*740*670mm

Heater type

Quartz heater

Heater size

770mm*8pcs

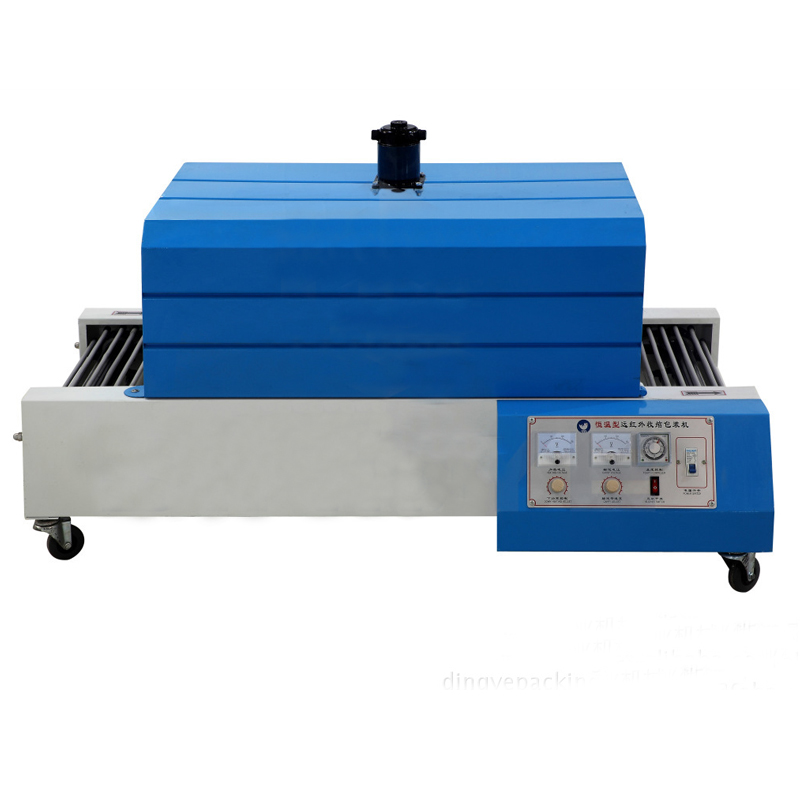

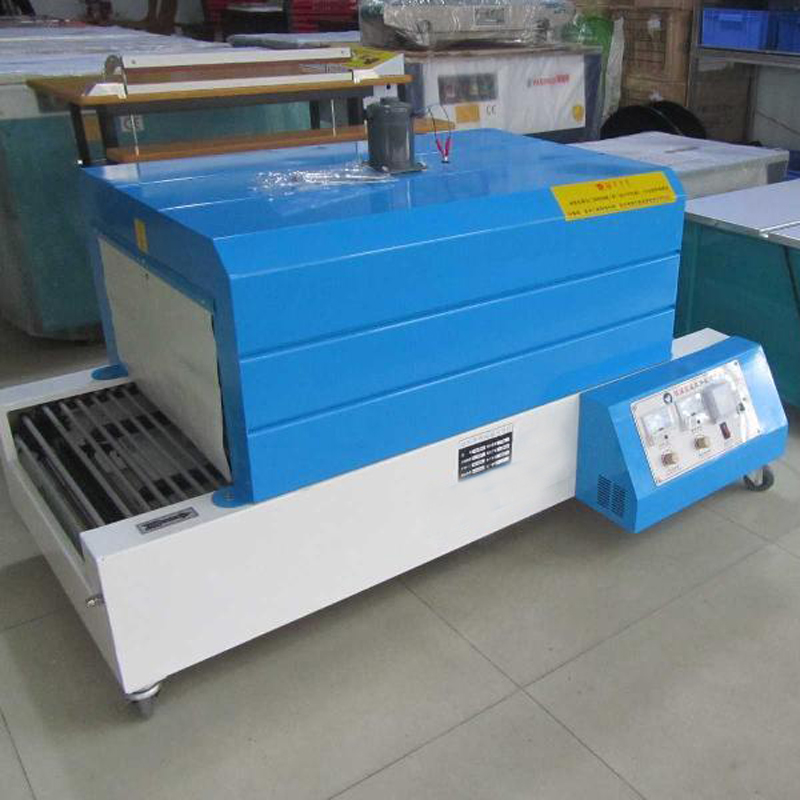

Pictures of BS-B400 Wrapping Heat Shrink Tunnel Machine
