Survived by Quality, Developed by Service!

SHRINK WRAPPING MACHINE

ALL THE EQUIPMENT

FOR CUSTOMERS TO CREATE PROFESSIONL QUALITY

FSCTORY DIRECT SALE
About our product

Heat shrinkable machine also calls the shrinking machine, heat shrink packaging machine, is one of the current market more advanced packaging methods. Wrapped with shrink film, outside the product or package after heat shrinkable film wrapped product or package, fully display items appearance, improve the product exhibit and increase the aesthetic value of

EQUIPMENT SCOPE OF APPLICATION

Heat shrinkable machine is widely used in glass bottles, plastic foam, paper boxes, toys, electronics, electrical appliances, stationery, books, music, hardware tools, daily necessities, medicine, cosmetics, beverage, fruit, mark label items such as packaging.

The main
classification
  • Automatic sealer
  • Horizontal Wrapping Machine
  • Toy box shrink packing machine
  • Reel stretch wrapping machine
  • Sleeve wrapper
  • Stretch pallet wrapping machine with CE
FEATURE

Shrinkage process, does not affect the quality of packing materials, and can shrink rapidly perfect, can seal products, moistureproof, prevent bump, apply to items more tight packing and pallet packaging.

  • Mainframe transmission part adopts roller rotation manner in work, shrink packaging at the bottom of the effect is more reasonable.
  • The use of special mechanical structure design, more beautiful, luxurious appearance, and make the maintenance easy and convenient.
  • A temperature control table with a unique combination of solid state voltage regulator temperature control in the form of the temperature error to a minimum.
  • All electrical components adopt high quality, famous brand manufacturers products, so the quality has been effectively guarantee.
  • Any type of shrink film, to perfect shrinkable packaging.
WORKING PRINCIPLE
A new type of any combination of automatic laminated membrane sealing heat shrinkable packaging machine, is a set of membrane sealing heat shrinkable packaging machinery.
Shrinking machine working principle is to use heat shrinkable film under heating condition, changed the original molecules between irregular arrangement, the infrared thermal radiation, such as plastic molecules to closely arranged, so that the original area is significantly reduced, tight packaging attached to product surface to achieve.
FUNCTIONS AND FEATURES
  • The packing size can be customized.
  • According to the customers demand, we can
    design assist device to accomplish the whole
    automatic processes.
  • Suitable for PE, PVC, POF film etc.
  • Quality guarantee period: 12 months.

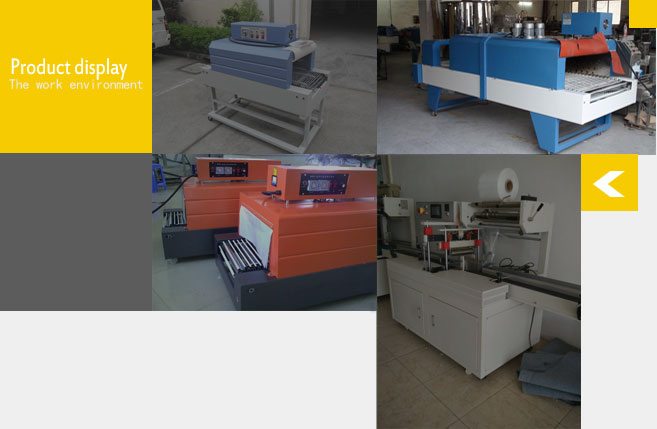

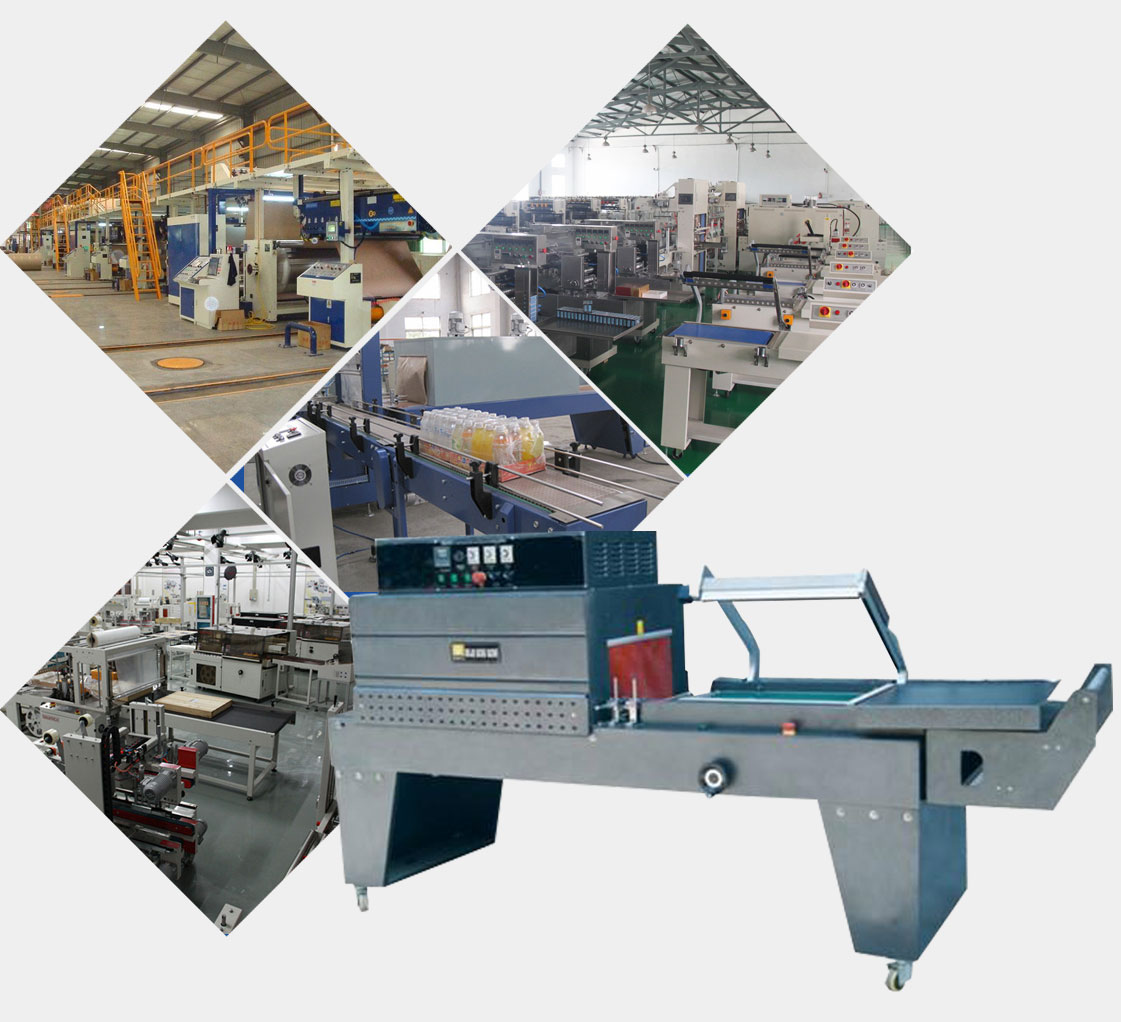

APPLY TO THE ENVIRONMENT

SHRINK WRAPPING MACHINE

YOUR BEST CHOICE

PRODUCT CATEGORIES

THE MAIN PRODUCTT INTRODUCTION

1

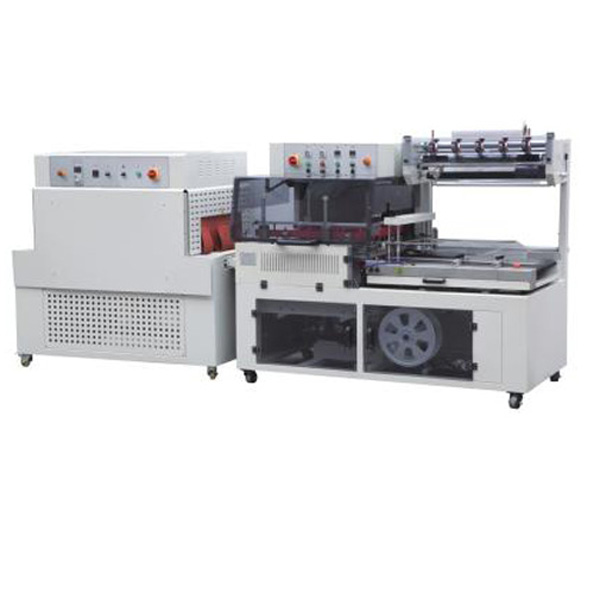

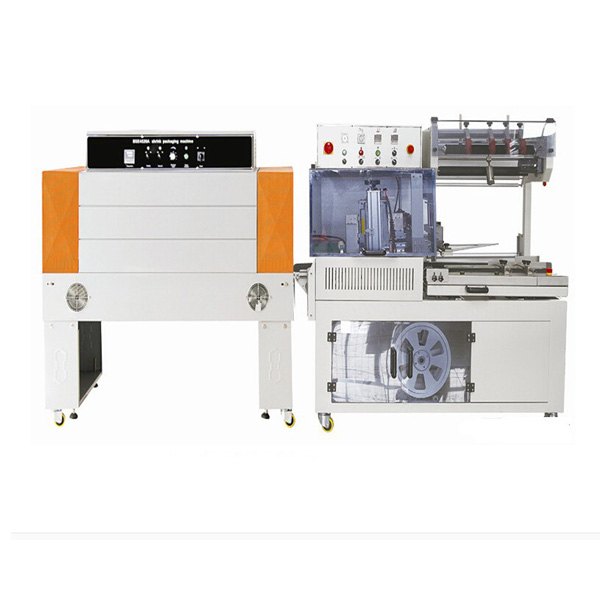

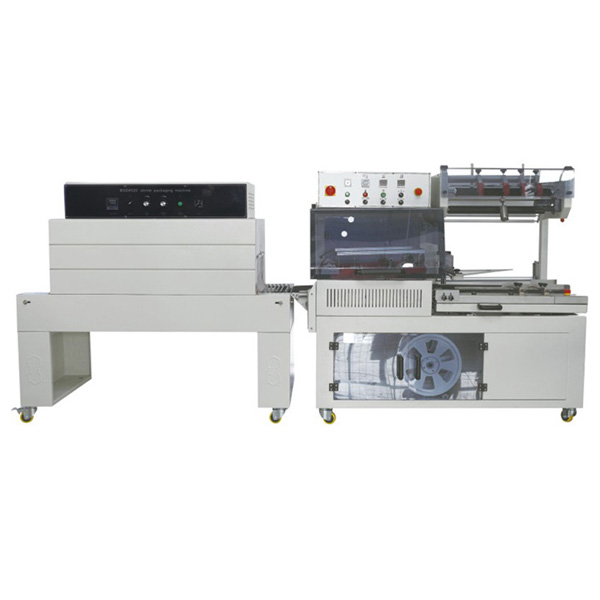

QL5545 automatic L-type sealer

Max packing size L500×W400×H120 mm
Max sealing size L550×W450 mm
Power 1.30 KW
Capacity 0-25 pcs/min
Voltage 220V 50/60HZ
Sealing temperature

180°C to 250°C depends on

thickness of film and environment

temperature
Thickness of film 0.015 to 0.10 mm
Air pressure 5 (Kg/cm2)
Packing material PE ,POF, PVC
Machine weight 320 kg
Machine size L1700×W900×H1400 mm
2

GG1200 Horizontal Wrapping Machine

Object size

Length: >1600mm

Width: 500-1100mm

Height: 77mm
Entrance conveyer length
1000mm unpowered conveyor roller
Outlet conveyer length
1000mm unpowered conveyor roller
Ring speed

20-60r/min
Power output app. 1.8kw
Power voltage AC 380v, 60Hz
Materia PE ,POF, PVC
LLDPE stretch film/HDPE film 320 kg
Width: 250mm, OD: 100-250mm, ID: 50mm
3

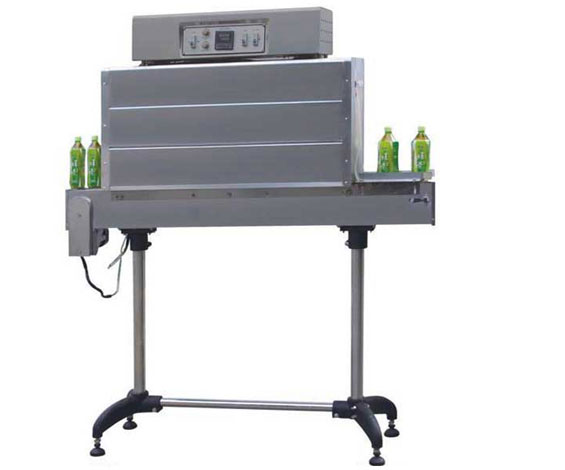

BSS-1538B shrink packing machine for bottle neck

Voltage 220V /50-60HZ
Power 9kw
Tunnel size
(L * W * H)mm 1000*150*380
Max.Packing size(mm)
(diameter*height)

105 * 350mm
Conveyor motor AC90W/220V
Conveyor speed 0-10m/min
Max.loading 15KGS
Shrink film POF,PVC,PP
Weight 96kg
Dimension (mm)(L*W*H) 1500*350*1500
