QL4518 Automatic Side L Sealing Machine

QL4518 Automatic Side L Sealing Machine is used to high capacity packing production line, feeding, conveying, entering bag, sealing can be finished at a time, it

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of QL4518 Automatic Side L Sealing Machine

1. QL4518 Automatic Side L Sealing Machine is used to high capacity packing production line, feeding, conveying, entering bag, sealing can be finished at a time, it has high working efficiency.
2. Vertical sealing adopts high quality supporting structure and two sides linear guideway to make sealing pressure balanced, frame won’t be damaged easily. . The sealing knife adopts copper alloy sprayed with teflon, it won't stick film, sealing fastness, without smoke, non-pollution
3. Side sealing adopts constant temperature sealing knife, sealing part is straight and strong, there is no limited about packing object length. Film feeding belt adopts widen and thicken belt, its using life is long and easily to be replaced.
4. Machine adopt PLC controller, it is equiped with horizontal and vertical photo sensor to reach high speed and automatic working.
5. It is easy to change the size, just need adjust the handle, operation is easy.
6. It can be connected with a production line
7. it has protection function to avoid sealing product wrong and ensure the safety of operator
8. Optional function is front inlet feeding conveyor.

Parameter of QL4518 Automatic Side L Sealing Machine

Model

QL4518

Max packing size(㎜)

L ∞,  W+2H≤450, H≤150

Max sealing size(㎜)

W450

Power(KW)

1.4

Capacity

0-21 pcs/min

Voltage

220V 50/60HZ

Sealing temperature

160℃—240℃ depends on thickness of film and environment temperature

Thickness of film(mm)

0.015-0.10

Air pressure(Kg/cm2) )

5

Packing material

POF PVC

Machine weight(㎏)

340

Machine size(㎜)

L1700×W1000×H1500

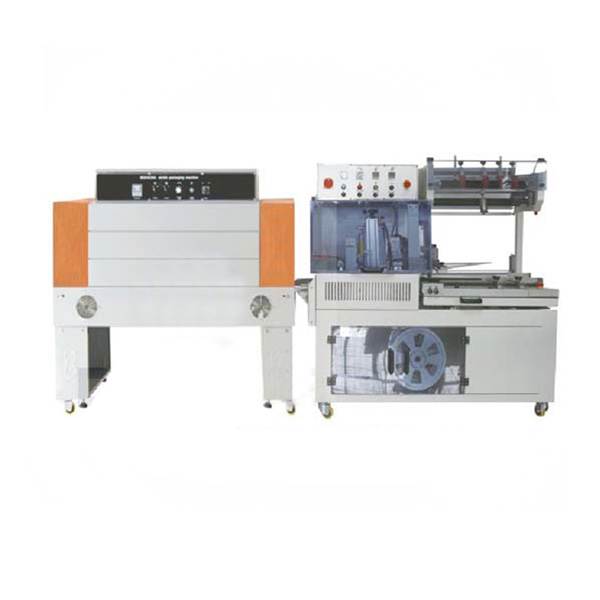

Pictures of QL4518 Automatic Side L Sealing Machine
