NOTICE:

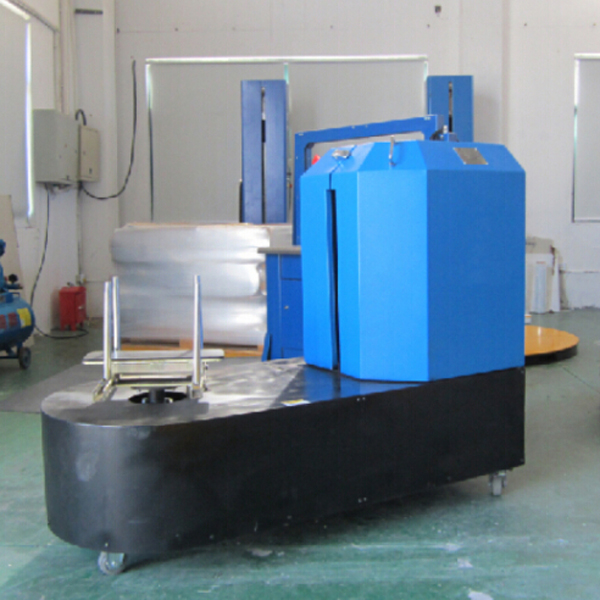

EL500 Airport Luggage Wrapping Machine is designed to wrap luggage and related items for security purpose in airport setting. Film provides extra support while the luggage is being transport to protect them from being damaged. And the plastic and closing label avoid wrong taking.
•World well known spare parts, Luggage Wrapping Machine Minimum maintenance
•Counter to record how many luggage be wrapped
•PLC controller, Wrap times easy adjust, adjust rang 0-9
•Powered Pre-stretch film carriage up to 200%to min film consumption
•Operator adjusts vertical rods to secure bag according the baggage size.
•Film Tension Control adjustment on the panel
•Luggage Wrapping Machine Turntable speed 3-20RPM adjustable
•This Luggage Wrapping Machine easy to be moved by one person
|
Size of the product to be wrapped |
|
|
Max luggage size |
180-400(Deep) x 400-1000(Height) x 300-650(Width) |
|
Max weight |
100kgs |
|
Film Carriage |
|
|
Carriage |
Power pre-stretch film carriage, stretch
ratio up to 200% |
|
Luggage Wrapping Machine Specification |
|
|
Turntable rotation speed: |
3-20 rpm adjustable |
|
Turntable height |
500mm |
|
Turntable size |
140x400mm (LXW) |
|
Power supply voltage |
220 Volt 1Ph - 50 Hz |
|
Power |
0.6Kw(Turntable motor:0.18kw, film carriage motor:0.37kw) |
|
Packing efficiency |
50-70 luggages/hour |
|
Luggage Wrapping Machine size |
1600mm x 650mm x 1200mm (LXWXH) |
|
Package size(mm) |
1750mm x 800mmx1400mm (LXWXH) |
|
Luggage Wrapping Machine net weight |
200kg |
|
Machine Gross weight |
260kg |
|
Stretch Film Roll detail |
|
|
Max. external diameter (D): |
230 mm |
|
Internal diameter (d): |
76 mm |
|
Film roll height (h): |
500 mm |
|
Film thickness: |
17-35 µm |
