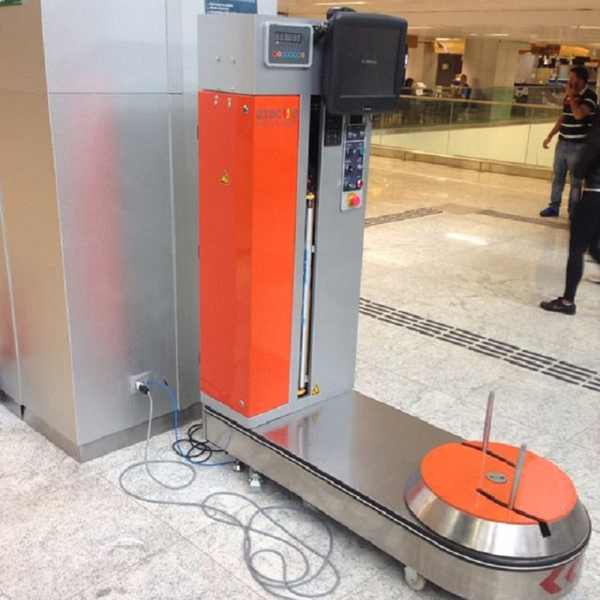

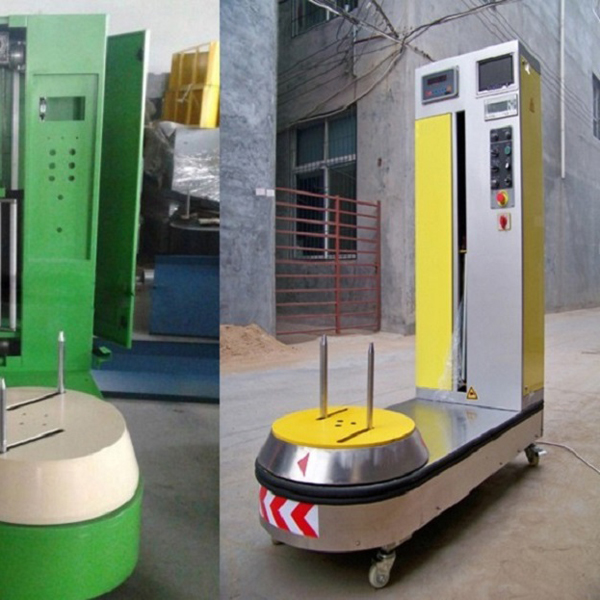

Airport Suitcase Luggage Wrapping Machine is a movable and manually operated rotary turntable device. This luggage wrapping machine use stretch film to wrap the luggage .
a. The operator placed the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size .
b. Then begin the wrap process, the operator press start button on control panel pack the luggage by a 3 to 5 layers of stretch film.
c.The operator cuts film tail and removed from the turntable.
d.The luggage wrapping machine is ready to accommodate the next piece of luggage.
Control system | PLC |
Turnable speed | 50rpm |
Max wrap size(L*W*H) | 800mm*450mm*1000mm |
Max wrap weight | 100kg |
Stretch film | 15-35um |
power/voltage | 1.2kw/220V/50-60HZ/1Phase |
luggage wrapping machine weight | 240kg |
luggage wrapping machine size(L*W*H) | 1650mm*600mm*1700mm |
