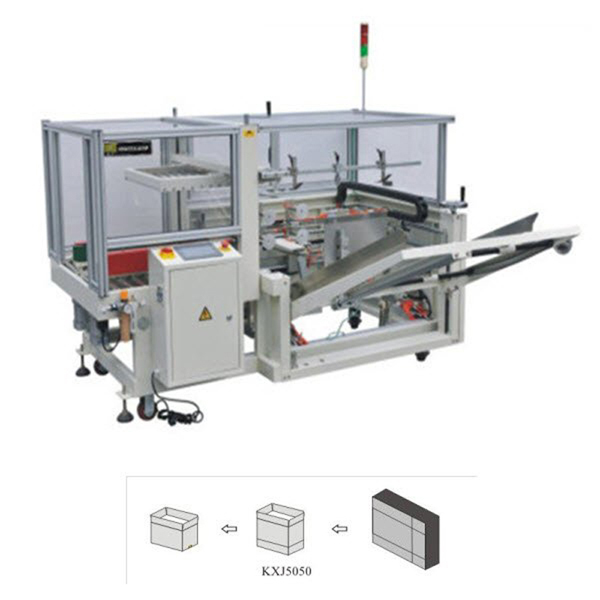

KXJ5050 Case Erector And Bottom Sealer Vertical storage is adopted for storaging carton blanks,for which carton blanks can be added at any time without stopping the machine;It's suitable for forming and sealing cartons of the same size.If carton size need to be changed,the operator should adjust the machine manually(finishing in 2-3 minutes);It's rationally designed so that the forming,folding and sealing process are accomplished simultaneously;All the parts are precise and durable,without causing any vibration in running .Running steadily with long life;Light in weight,high performance and speed.
Model |
KXJ5050 |
Carton Size |
L200~450mm/W150~400mm/H100~350mm |
Table height |
Min.H600 Max.H720mm |
Speed |
1-10 box/min |
Dimension |
L2000*W1900*H1450mm |
Power supply |
220V/380V 50/60HZ |
Air source |
>500L/min、0.4~0.8Mpa |
Tape |
W48mm-W60-75mm*L1000 |
Machine weight |
NW-400kg GW-550kg |
