NOTICE:

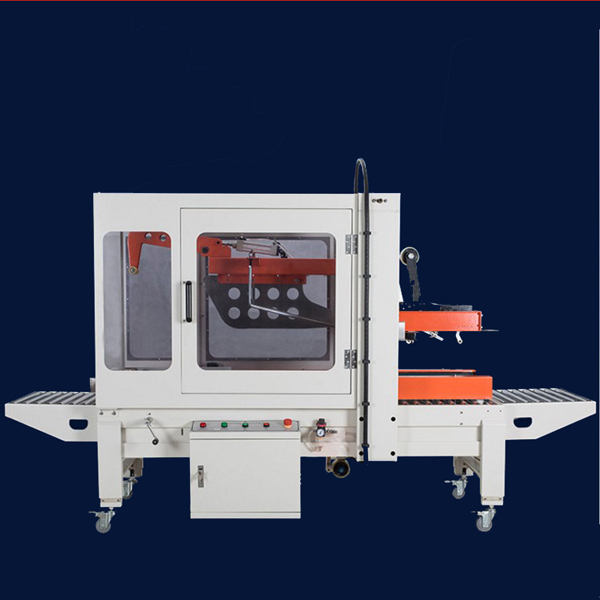

FXZ5050 Auto Fold Automatic Box Taping Machine Carton Sealer is mainly useful for the sealing and packing of cartons, which can be single-unit operation or also equipped into production line. It is widely used in the fields of electrical domestic appliance, foodstuffs, general merchandise, medicine and chemical industry. The top, side and back flap of the carton can be folded automatically, with high speed&smooth.
New Features:
1).Whole new design cutting combined parts .More easy operation,nice sound of tape running.
2).Wider feeding belt,more loading weight,less wastage.
Options
1).Tape printer
2).Carton printer
3). 3'' tape width parts.
Model |
FXZ5050 |
Power supply |
AC220V/50,AC110V/60Hz 420W |
Max. packing dimension |
500(W)* 500(H)* 600(L)mm |
Min. packing dimension |
200(W)*160 (H)*200 (L)mm |
Air Pressure |
2/3L, 5Kg/cm² |
Working table height: |
600-700mm |
speed |
18m/min |
Width of adhesive tape |
48mm. 60mm. 75mm |
Machine size |
2836×1010×(1600-1700)MM |
