NOTICE:

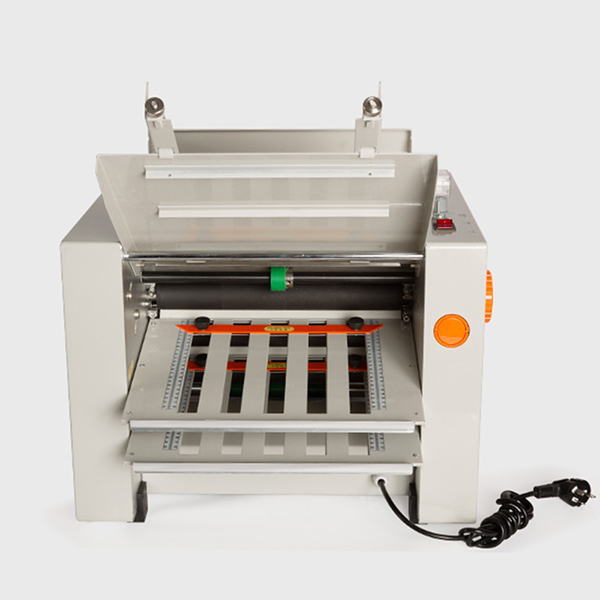

ZE series automatic book paper sheet folding machine is invented as a mini-type horizontal folding machine,it is suitable for folding paper in different styles,it adopt big rubber wheel to convey paper,separate paper precisely,operate easily and efficiently,it can be widely used in operation Instruction Manuals,document letters,business letters.The width of ZE-8B after minimal folding is 20mm,and especially suit for folding operation manual of the little medicine and cosmetic.
This folding machine has stable performance, convenient operation, also the speed is steeples adjustable which is high efficiency.
|
Model |
ZE-8B/2 |
ZE-8B/4 |
ZE-9B/2 |
ZE-9B/4 |
|
|
Power supplier |
v/Hz |
AC 220/50 110/60 |
|||
|
Power |
w |
70 |
|||
|
Folding times |
2 |
4 |
2 |
4 |
|
|
Max paper sheet |
mm |
310×700 |
210×420 |
210×620 |
|
|
Min paper sheet |
mm |
50×70 |
|||
|
Paper weight |
gsm |
20-125 |
|||
|
Max speed |
m/min |
80 |
|||
|
Weight |
kg |
35 |
48 |
30 |
43.5 |
|
Overall dimension |
mm |
1050×525×505 |
1080×530×580 |
1020×425×525 |
1020×430×580 |
