NOTICE:

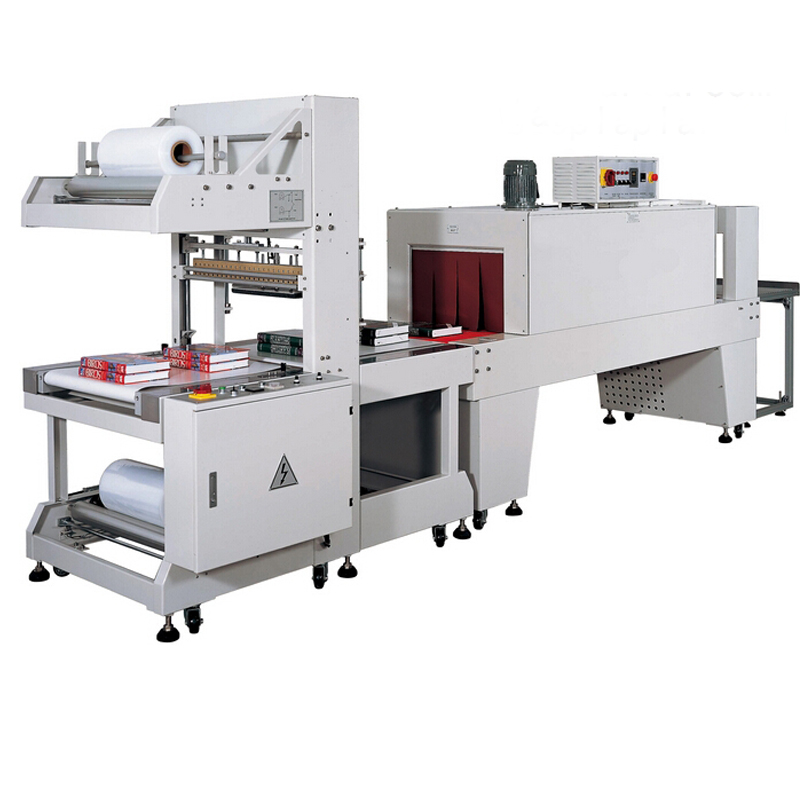

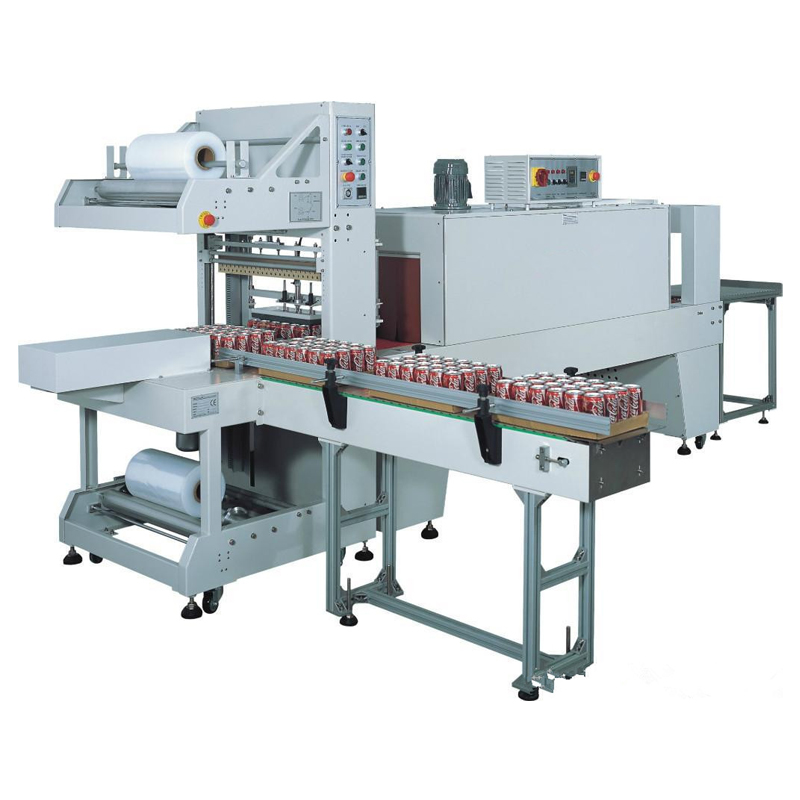

BSE-5040 series sleeve wrapper is suitable
for wrapping pop-cans, bottles, etc, both with bottom-tray and without
bottom-tray, working with BSE-5040 or other PE shrink tunnels.
BSE-5040 Series Sleeve Wrapper adopts the Germany advanced technology and international famous brands,
which makes capability stable and using long-time.
Up and down magnetic switch prevent sealing mistakes, and protect the
operators. ;
The input position is adjustable, base on the size of products packaged.
‘Schneider PLC, ‘Schneider AC contractor, and Intelligent temperature
controller performs stable.
Large power conveyor motor, with steeples speed regulating, ensures smooth
feeding.
Up and down large power fan system ensures the excellent effect of shrinking in
one time.
Super cooling system cools the packing and makes the figuration
perfectly.
The size of tunnel can be customized as your request.
Model |
FL-5040 (Pneumatic) |
Model |
BSE5040A |
Power supply |
220-240V, 50-60Hz;1.8KW |
Power supply |
3phase 220V/380-460V 50-60HZ |
Capacity |
0-6pcs/minute |
Heater power |
20KW Adjuster |
Sealing time/shrink time |
0.5-1.5s, 0-0.6s |
Conveyer speed |
0-10m/minute |
Conveyor loading |
25kg |
Tunnel size(L*W*H) |
1500*500*460mm |
Film width |
Max. 500mm |
Conveyer loading |
30kg MAX. |
Film thickness |
0.03-0.25mm |
Shrink film |
PE,POF,PVC,PP |
Max. packing dimension(L*W*H) |
450 x 270 x 350mm |
Machine weight |
470KG |
Min. packing dimension(L*W*H) |
250 x 60 x 60mm |
Machine size |
2500*820*1680mm |
Machine size(L*W*H) |
1020 x 830 x 1980mm |
|
|
