In this article, I will show you the
introduction and
structure of the
cup filling sealing machine.
First, the
introduction of the
cup filling sealing machine:

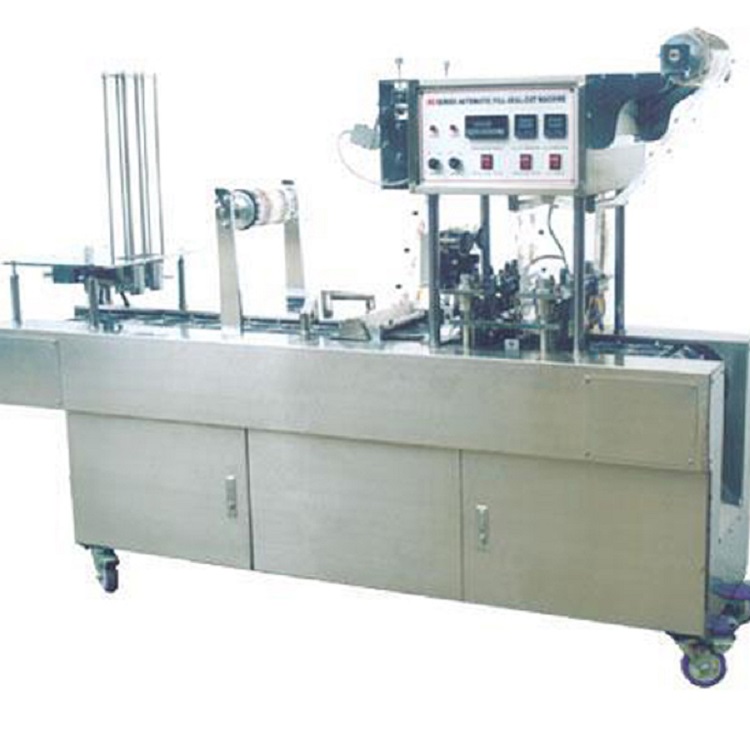

Cup filling sealing machine is a kind of equipment that can seal the mouth of the container, which is suitable for the production of various kinds of yogurt, milk, soy milk, juice drinks, spices, jam and other products. It has the functions of automatic cup dropping, filling, bacteria elimination, photoelectric tracking, sealing (cover), automatic core cutting, waste film recycling and so on. The machine has high degree of automation, good sealing strength, reasonable structure, high production efficiency, suitable for all kinds of imported and domestic aluminum plastic, PP, PE, CPP and other composite web packing and sealing materials. Made of stainless steel, high aesthetic, stable operation, really meet the requirements of durability.
Second,
cup filling sealing machine structure:
The general
cup filling sealing machine is composed of a frame, a decelerating speed regulating transmission structure, a sealing printing structure, a conveying device and electrical and electronic control system.
After the power supply is switched on, the structure begins to work, the electric heating element is heated after the power supply, so that the upper and lower heating block rises sharply, and through the temperature control system to adjust to the required temperature, stamping wheel rotation, according to the need of cooling system cooling, conveyor belt transmission, and by the speed regulating device to adjust to the required speed.
When the package containing the articles is placed on the conveyor belt, the sealing part of the bag is automatically sent between the two sealing belts in operation, and brought into the heating area. The heat of the heating block is transferred to the sealing part of the bag through the sealing belt, so that the film is softened by hot melt, and then through the cooling area, the surface temperature of the film is lowered properly, and then rolled by the knurled wheel (or printing wheel). The sealing part of the upper and lower plastic film bonding and pressing mesh pattern (or printed marks), and then by the guide rubber belt and conveyor belt will be sealed bag out of the machine, to complete the sealing operation.
