Today I will introduce the principle structure and product parameters of continuous band sealer for you.
First, its
principle structure:
1. The

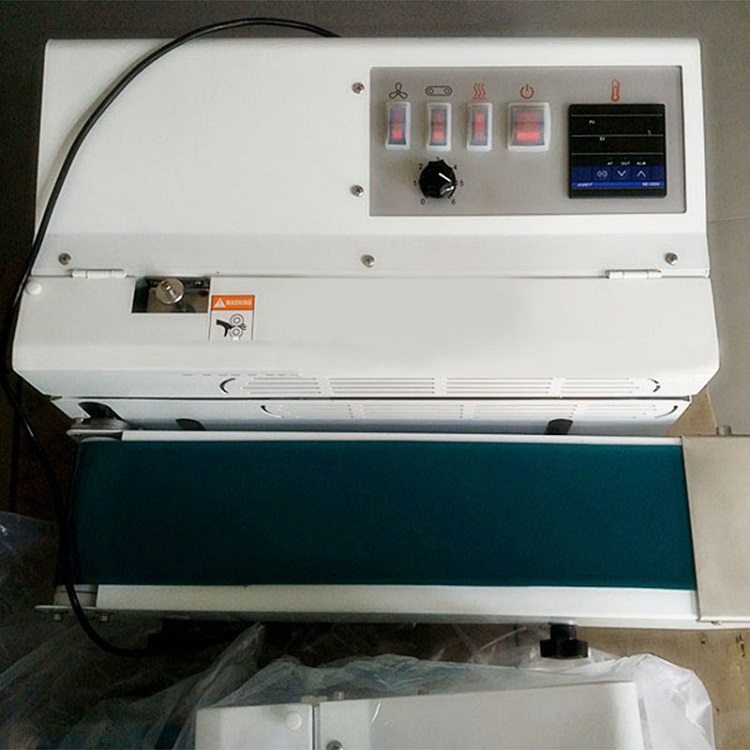

continuous band sealer is composed of a frame, a deceleration speed regulating transmission structure, a heating and cooling structure, a sealing printing structure, a conveying device and an electrical and electronic control system.
2, switch on the power supply, the structure starts to work. The working principle of the
continuous band sealer is that the electric heating element is heated after being energized, so that the upper and lower heating block is heated sharply and the control system is adjusted to the required temperature; Impression wheel rotation; Cooling system starts cooling as required; The conveyor belt is transferred and adjusted to the desired speed by the speed regulating device.
3. When the package containing the articles is placed on the conveyor belt, the sealing part of the bag is automatically sent to the two sealing belts in operation and brought into the heating area. The working principle of the heating area is that the heat of the heating block is transmitted to the sealing part of the bag through the sealing belt, so that the film is softened by hot melt. The sealing part of the upper and lower plastic film bonding and pressing mesh pattern (or printed marks), and then by the guide rubber belt and conveyor belt will be sealed bag out of the machine, to complete the sealing operation.
Second, its
product parameters:
1. Power supply voltage parameters (V/HZ) : AC 220/50 110/602. Motor power parameter (W) : 50W
3. Electric heating power parameter (W) : 300×2
4. Sealing line speed (M/MIN) : 0-12 (0-16)
5. Sealing width (MM) : 8 10
6. Temperature control range (℃) : 0-300
7. Printing type steel wheel indentation printing (optional)
8. Distance between sealing center and conveying table (MM) : 10-40
9. Conveying platform size (L×W) (MM) : 840×180
10. Conveying platform single large bearing weight (KG) : ≤1
11. Total bearing weight of conveying platform: ≤3
12. Overall dimension (L×W×H) (MM) : 840×550×800
13. Net weight (KG) : 40
