Adjustment Method Of Sealing Machine Conveying Part

The conveying part is mainly divided into a conveying belt and a conveying table. When many users are operating, they will encounter the problem that the conveying belt is too tight or too loose, and the upper and lower positions of the conveying table are not suitable. Then we need to adjust it by hand. How to adjust the conveying part of the sealing machine, let's take a brief look below.

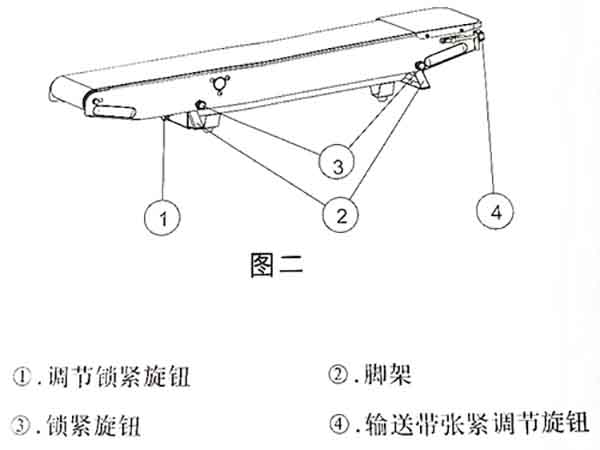

Conveyor belt tension adjustment: When the conveyor belt is too loose or too tight, turn the two belt conveyor tension adjustment buttons ④ at the same time (right-handed for tension, left-handed for loosening) until the belt is properly tight. Just fine.

Fine adjustment of front and back of the conveying table: When the front and back of the conveying table need to be adjusted, first loosen the "adjustment locking knobs ①" on both sides, and then push or pull the worktable until the position is appropriate, and then lock the "adjustment locks" on both sides separately. Tighten the knob ① ".

Fine adjustment of the up and down of the conveying table: When the up and down of the conveying table needs to be adjusted, first loosen the "lock knobs ③" on both sides, and then move the work table up or down until the position is appropriate, and then lock the "lock knobs" on both sides respectively. ③ ".
