KZ-32 Pneumatic Combination Steel Strapping Tool

KZ-32 Pneumatic Combination Steel Strapping Tool is a widely used Hanging Steel Strapping Machine With 32mm Metal Strap, very suitable for strapping of bars, bundles, pipes, coils and packages having

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of KZ-32 Pneumatic Combination Steel Strapping Tool

KZ-32 Pneumatic Combination Steel Strapping Tool is a widely used Hanging Steel Strapping Machine With 32mm Metal Strap, very suitable for strapping of bars, bundles, pipes, coils and packages having a small surface. If used for stationary operation the tool may be suspended on a spring-loaded balancer using a suspension bracket.

Parameter of KZ-32 Pneumatic Combination Steel Strapping Tool

Series Products

 KZ Pneumatic Strapping Tool Series

product model

 KZ - 32/19

strapping material

 steel strip using

air pressure

 0.35 ~ 0.6 Mpa

using the strip specification

 (19 ~ 32) x (0.8 ~ 1.2) mm

steel strip tension speed

 5.3 m/min

tensioning force

 acuity 9.8 kn / 0.6 Mpa

tensile strength lock parts

 acuity 18.4 kn engine

Pneumatic power



Power

 6.5 (kw)

Type

 sheet metal baling press

Model

 KZ - 32

The degree of automation

 automatic

Maximum

 package force 9000 (N)

Biggest packing width

 32 (mm)

Minimum width of packing

 25 (mm)

Paper core size

 400 (mm)

weight

 15

Packing type

 box, belt, tube, cans, barrels and other

Applicable objects

 metal, other

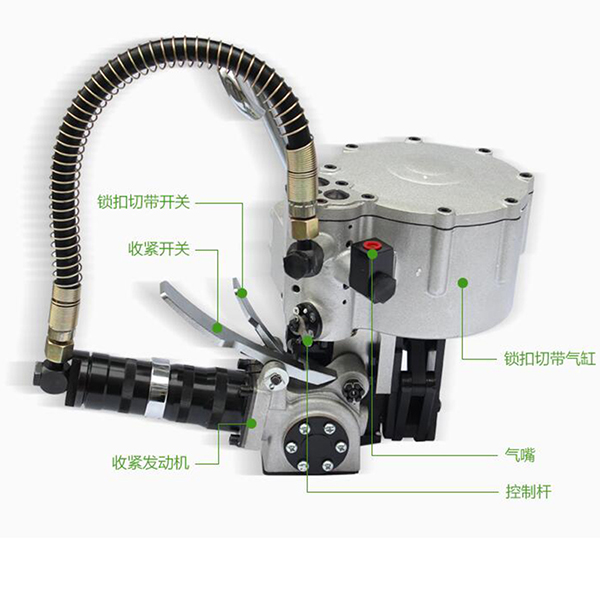

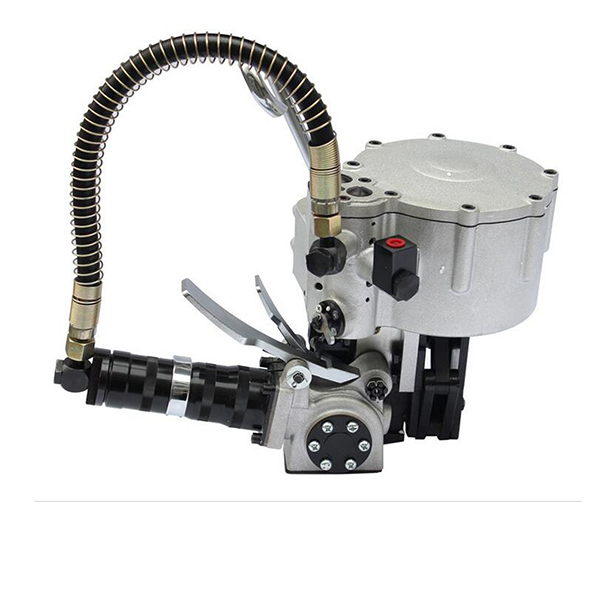

Pictures of KZ-32 Pneumatic Combination Steel Strapping Tool
