DZ600/2C

Vacuum
Packaging Machine

Widely used in the vacuum packaging needs of
food, dry goods, electronic components
and other products.

  • Vacuum

    Once the vacuum chamber closes, the vacuum pump starts to work, vacuum chamber begins extracting out air, while the packaging bag turns into vacuum packaging.
    Pointer of vacuum gauge starts to rise and the vacuum pump stops working while the pointer reached the related vacuum degree. The work of vacuum is over.

  • Heat
    Sealing

    IDT disconnected, the outside air comes into the heat-sealing chamber through the upper air intake hole.

    Because of the pressure difference between the vacuum chamber and the heat-sealing chamber, the heat-sealing chamber is inflated, the upper hot planes moves down and presses the bag mouth.

  • Air
    Returning

    2DT opened, the air comes into the vacuum chamber, pointer of vacuum gauge turns to zero, hot planes resets by reset spring, vacuum chamber opened.

  • Circulation

    The next working process starts while the working place moves from one vacuum chamber to another vacuum chamber. The two vacuum chambers work alternatively ,the cycle repeats itself.

Professional stands test of time!
Providing the best packaging machinery solutions!

vacuum packing machine

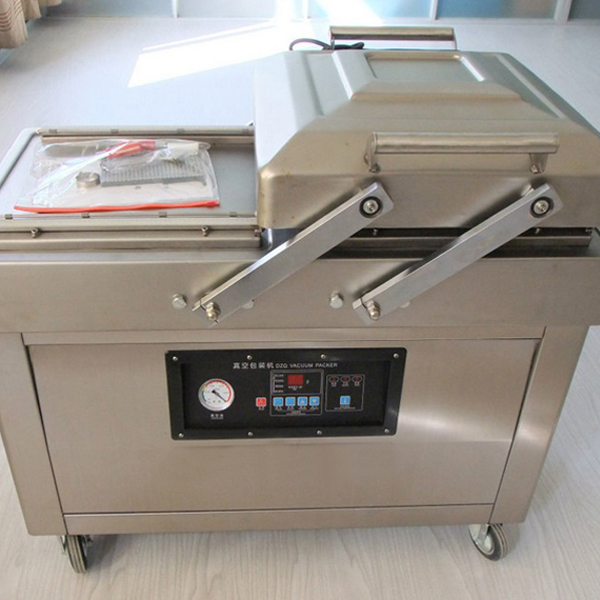

DZ600/2C Double Chamber Vacuum Packaging Machine

Double chamber vacuum packaging machine is a kind of packaging equipment, which achieves the purpose of anti-corrosion by evacuating through the vacuum chamber and filling with an inert gas. Automatic double chamber vacuum packaging machine is designed for products in high water content. Using the Japanese control lines, learning advanced technology experience from the same foreign industry. For the electrical equipment, it adopts microcomputer controller to make full control, which has the advantages of waterproof, moisture-proof, low failure rate, and long service life. And these advantages make the device easy to clean, even if directly water washing is ok. Frame body uses the international standards 304 stainless steel, which is used for food. High strength makes it hard to break, and the unique tilt table design makes sure that the water does not drain from the product, so that watery vacuum packaging is easier to operate.

  • Color
    Touch Screen

  • Vacuum System

  • Temperature
    control System

  • Cooling System

  • Inflation System

vacuum packing machine vacuum packing machine

Vacuum machine uses plastic film or plastic foil composite film as the packaging materials, which is effective for various instruments and medicines, food, fruit, pickles, preserved fruit, aquatic products, native products, chemical raw materials, electronic components and military supplies in preventing corruption and deterioration caused by lipid product oxidation and aerobic bacteria, so as to achieve keeping good quality, freshness, and preserving flavor and color. Meanwhile, for some of soft goods, vacuum packaging will shrink the packaging volume, which is easy to transport and storage.

vacuum packing machine vacuum packing machine

Vacuum Packaging Machine Working Procedures

The function of location, convenient repair, simple operation, wide application and advantages. Suitable for soft packing material plastic composite thin wax or plastic foil bags,anti-static bag etc.. Of solid, liquid, powder, paste and electronic products, circuit board, SMT patch material tray, toys, food, tea, fruit, chemical products, electronic components, precision instrument and meter vacuum packaging. Packaged product to prevent oxidation, mildew, corruption,x moisture, vibration, can extend product shelf-life storage period.
  • packing machine

    Vacuum

    Vacuum chamber covers, vacuum
    pump works, vacuum chamber
    began pumping air into vacuum
    state,meanwhile,bags in vacuum,
    vacuum gauge pointer rises,
    achieves the rated vacuum
    (controlled by time relay ISJ)
    vacuum pump stop working, and
    vacuum stops.In a vacuum, at the
    same time two-position three-way
    solenoid valve IDT begin to work,
    heat seal chamber vacuum
    pressing frame in position.

  • packing machine

    Heat Sealing

    IDT break, outside air through the
    upper air intake into the sealing
    gas chamber. Make use of the
    vacuum pressure difference
    between indoor and sealing gas
    chamber , sealing gas chamber
    inflated, press the mouth;hot air
    transformer work at the same time,
    began to seal,and meanwhile,time
    relay 2SJ works,action after a few
    seconds, heat sealing ends.

  • packing machine

    Gas Restoratiton

    Two position two way solenoid
    valve 2DT passes,air into the
    vacuum chamber, vacuum gauge
    pointer back to zero, hot pressing
    on reset spring reset, vacuum
    chamber open cover.

  • packing machine

    Circulation

    Move top vacuum chamber to another vacuum chamber, then into the next process, around two rooms work alternately, cycling.

Applications of Vacuum Packaging Machine

Vacuum packaging requirements of DZ series vacuum packing machine is widely used in food, electronics, electrical appliances,dry cargo, documents, notes and other products. Vacuum packaging products to prevent oxidation, mildew, moth eaten, damp; durability, extend the product storage period. Factories, stores, the best choice for the self-employed vacuum products.

DZ series vacuum packing machine is widely used in food, dry goods, electronics, electrical appliances, documents, paper products vacuum packaging requirements,etc. Vacuum packing products can prevent oxidation, mildew, moth, be affected with damp be affected with damp. Can guarantee the quality , extend the life of product,which is the best choice for factories, shops and the SOHO,etc.

Applications of Vacuum Packaging Machine

Characteristics of Vacuum Packaging Machine

In the food industry, vacuum packaging is widely used, various kinds of cooked products such as chicken, ham, sausage, grilled fillet, dried beef;
pickled products such as food more and more variety of pickles and bean products, preserved fruit needs fresh by vacuum packaging.
After vacuum packed food to preserve a long, greatly extend the shelf life of foods.
  • vacuum packing machine

    Ruled out the parts of the packaging container air (oxygen), can effectively prevent food deterioration.

  • vacuum packing machine

    Good barrier property (air tightness) packing materials and sealing technology and strict requirements, can effectively prevent the packing content material exchange,can avoid not only weight loss and ageusia , but also can prevent the secondary pollution.

  • vacuum packing machine

    Vacuum container inner gas has been ruled out, speeding up the heat conduction, it can not only improve the efficiency of thermal sterilization,but also avoid during the heating sterilization, packaging container cracking due to the expansion of gases.

Vacuum Packaging Machine Technology Parameters

Vacuum packaging requirements of DZ series vacuum packing machine is widely used in food, electronics, electrical appliances, dry cargo, documents, notes and other products. Vacuum packaging products to prevent oxidation, mildew, moth eaten, damp;
durability, extend the product storage period. Factories, stores, the best choice for the self-employed vacuum products.

Model DZ400/2C DZ500/2C DZ600/2C
Material Stainless Steel Vacuum Chamber Stainless Steel Vacuum Chamber Stainless Steel Vacuum Chamber
Vacuum Chamber Size(MM) 490*445*40 570*550*45 670*545*45
Voltage(V/HZ) 220/50 380/50 380/50
Power(KW) 0.75 1.5 2.2
Sealing Length(MM) 400 500 600
Sealing Width(MM) 10 10 10
Maximum Sealing Thickness(MM) 0.1-0.5 0.1-0.5 0.1-0.5
Sealing Time Range(s) 10-35 10-35 10-40
Packing Size(CM) 105*107*75 110*135*75 115*165*80
Weight{KG) 162 205 252
