NOTICE:

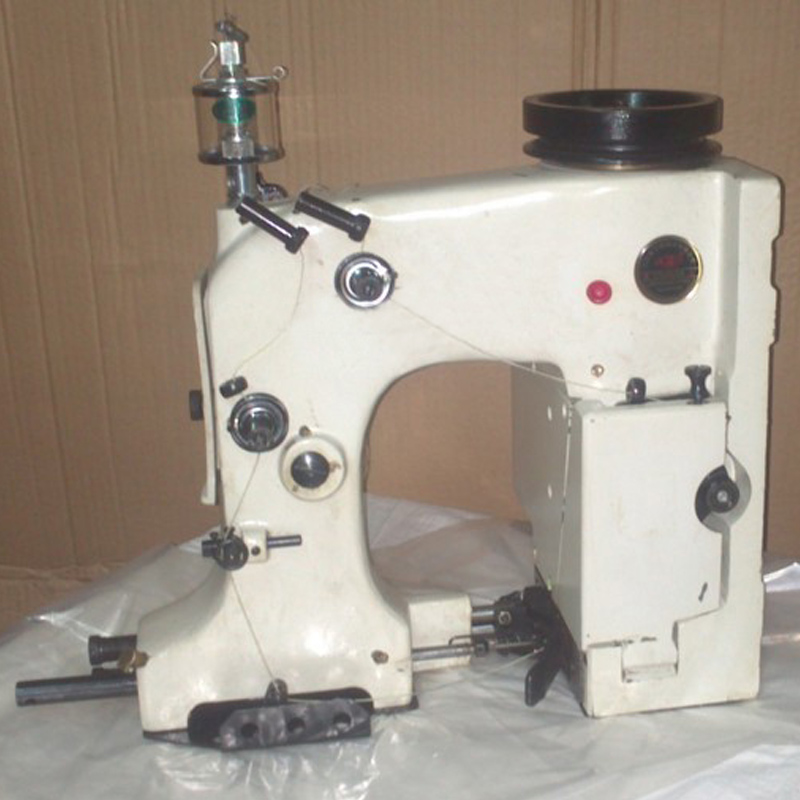

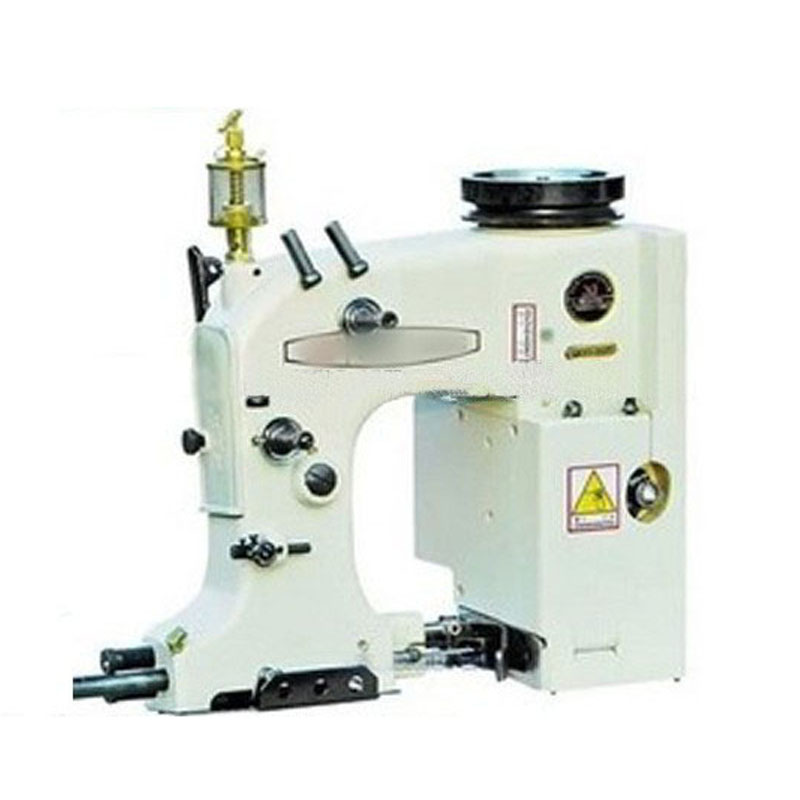

GK35-2C Bag Closer Sewing Machine includes sewing machine, sewing machine supporting frame column,conveyor, including belt conveyor, chain conveyor, module mesh belt conveyor, etc. and the corresponding control device.
Application: widely used in the industry of food, chemical fertilizer, chemical, feed, building materials, chemical, wharf, etc of the bag, plastic woven bag, paper bags, such as bags sealing sewing and transportation.
|
Model |
GK35-2C |
|
Max. Sewing Speed |
1,800 s.p.m |
|
Max. Sewing Capacity |
11mm (7/16 in.), 32 plies of paper |
|
Stitch Length |
6.5~11mm |
|
Stitch Type |
Single needle double thread chain stitch 401 |
|
Presser Foot Lift |
16mm (5/8 in.) |
|
Feed Type |
Drop feed |
|
Thread Chain Cutter |
Mechanical |
|
Lubrication |
Sight feed oilier and manual |
|
Needle |
UY9848G, UY9856T |
|
Thread |
Polyester 20/6, 20/9 (2×3, 3×3) |
|
Weight |
27kg / 30kg |
|
Dimension |
350×215×440mm |
