Automatic Nespresso Coffee Capsule Filling And Sealing Machine

Automatic Nespresso Coffee Capsule Filling And Sealing Machine is used for coffee capsules filling with coffee powers.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Automatic Nespresso Coffee Capsule Filling And Sealing Machine

Automatic coffee capsule filling and sealing machine for K cup, nespresso, lavazza
Automatic Nespresso Coffee Capsule Filling And Sealing Machine is used for coffee capsules filling with coffee powers.
1.Stable and reliable functions, security and alarming functions
2.Filling volume precisely and seals cups perfectly
3.Stepless speed control, can adjust filling time.
4.Alumite as moving molds, extraordinarily durable and sanitary
5.All the components are made by famous company in the world.
6.Using piston valve filling head,auto-control the volume intank.
7.Equipped with noise reduction device, comfortable for operators.
Working process of Coffee capsules filling and sealing machine :
1.auto feed coffee capsules/cups onto machine conveyor belt
2.auto feed inner filter layer before fill powder(optional)
3.auto sorting function for the out pack and inner filter layer(optional)
4.auto fill coffee powder as precise weight 3g, 5g,7g, 10g etc
5.press the powder to ensure totally into cup/capsule
6.feed the filter paper/layer cover the coffee powder(optional)
7.auto feed foil and twice heat seal .
8. Automatic output final capsule/cup (could connect to conveyor belt)
Notice: above steps may change upon the different capsule product kind.

Parameter of Automatic Nespresso Coffee Capsule Filling And Sealing Machine

Capacity

900-16,000 pcs/h

Capsule mouth diameter

37mm, 45mm,etc.

Capsule volume

7g/9g/13g,etc (can be customize)

Seal material

Foil is suggested!

Voltage

220V/380V 1/3phs

Power

1.5-5Kw

Air pressure

0.6-0.85MPa

Max air consumption

0.45 m3/min

Machine dimension

4300*(650-1400)

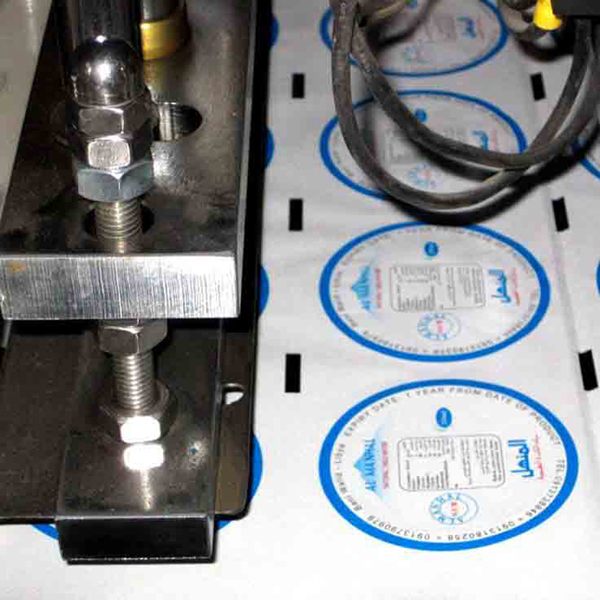

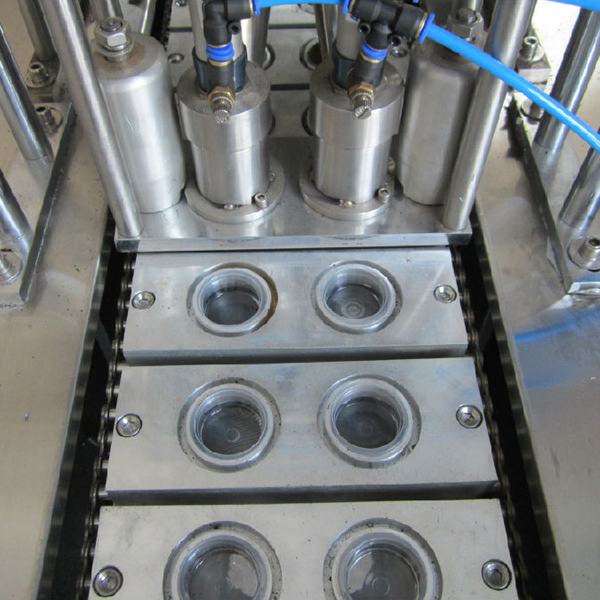

Pictures of Automatic Nespresso Coffee Capsule Filling And Sealing Machine
