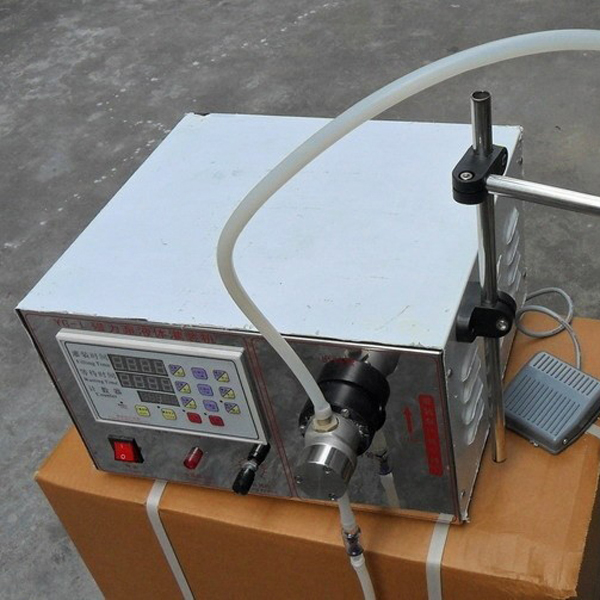

YG-1 Single Head Magnetic Pump E-liquid Filling Machine 220V Principle and characteristics
1, world brand frequency converter, equipped with imported high-precision multi-turn potentiometer and lockable dial, so that stable and accurate flow regulation, the error is negative small at 0.5%, is small at 1.5%.
2, Imported 316 stainless steel magnetic gear pump, reliable quality and long life;
3, stainless steel chassis, durable;
4, small, easy to operate;
5, the the cleaning Qingdu convenient;
6, full-featured, automatic and manual can be. With work on the assembly line;
7, can be equipped with multiple filling heads, commonly used models have a single head machine, double and four machine;
8, I have filling capacity from 1ml to 10000ml adjustable, easy to adjust.
Machine type |
YG-1 |
YG-2 |
YG-4 |
Rated voltage |
220V / 110V |
220V / 110V |
220V / 110V |
Maximum power |
40W |
(40X2)W |
(40X4)W |
Host weight |
14kg |
18KG |
28KG |
Error |
± 1.5% |
± 1.5% |
± 1.5% |
Maximum flow / single pump |
> 1.44 / min |
> 1.44 / min |
> 1.44 / min |
Host size |
410 × 330 × 270 (mm) |
510×330×270(mm) |
720×330×270(mm) |
Package Size |
600 × 470 × 365 (mm) |
600×470×365(mm) |
810×470×365(mm) |
