Main Structure and Working Principle of Continuous Sealing Machine

Continuous sealing machine's mian structure and working principle as following:

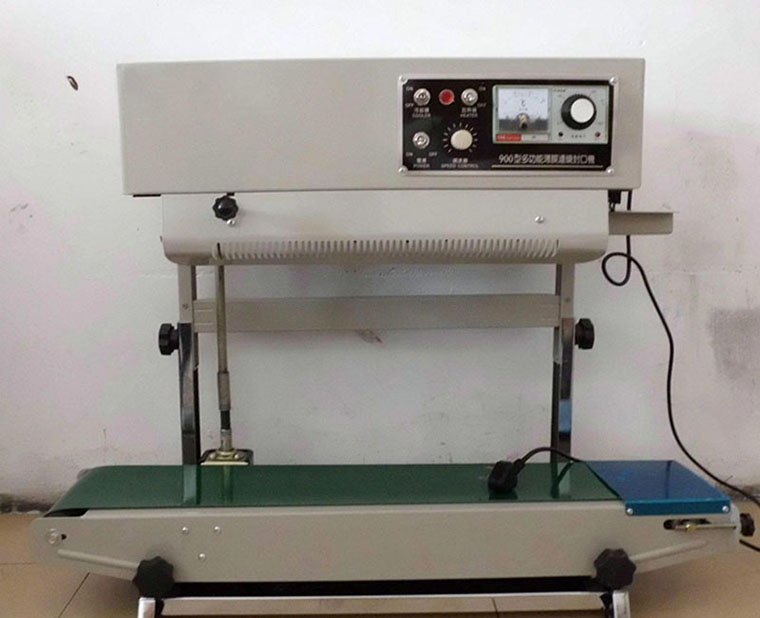

1, automatic plastic bag sealing machine is composed of a machine frame, a speed reducer drive mechanism, the heating radiating mechanism, sealing printing mechanism and conveying device and the electronic control system and other components.

2, connected to power, the agency began to work. Electric heating element through electric heating, the heating block rapid warming and control system to adjust to the required temperature, pressure wheel rotation; according to the cooling system needs to start cooling; conveyor belt transfer, and by the speed adjustment device to the desired speed.

3, when equipped with items of packaging placed on the conveyor belt, bag sealing parts are automatically sent to the operation of the two sealing belt and into the heating zone, heat heating block by sealing belt transmission to the bag sealing part, the film heating molten soft, through the cooling zone, after surface temperature appropriate decline, then after knurling wheel (or print wheel is rolled, the sealing part under plastic film pasted with pressing a reticular pattern (or printed logo), by guiding rubber belt and conveyor belt sealing packing bag dispensing machine, complete the sealing operation.
