Do You Know The Classification And Working Principle Of Blister Packaging Machine

Roll blister packaging machine

The working principle of the roller blister packaging machine: the forming film is heated and softened by the heating device, and the blister is sucked by vacuum vacuum on the roller forming molding roller, and the filling device fills the package into the blister, and then passes through the roller type. The heat sealing device seals the single-sided adhesive-coated cover film on the surface of the blister material at a suitable temperature and pressure, and seals the packaged object in the blister. After printing, the printing unit prints the batch number and presses the broken line, and finally the punching device is punched into a product section of a certain size.

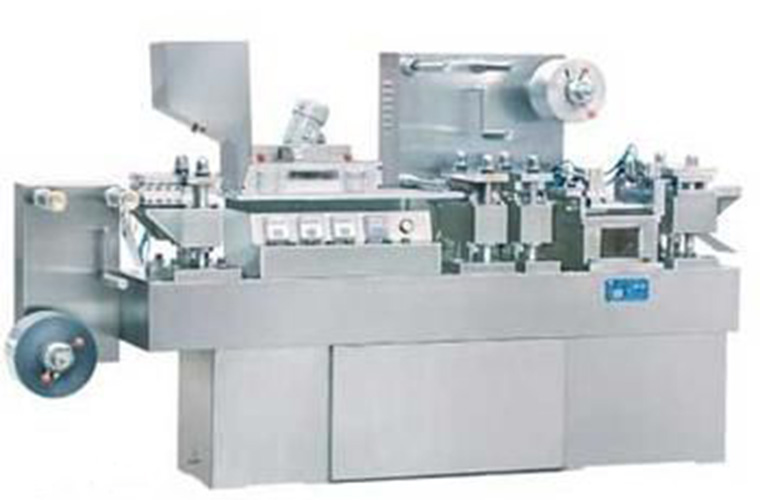

Flat blister packaging machine

The working principle of the flat blister packaging machine: the formed film is heated and softened by the flat heating device, and the softened film is blown into a blister by using compressed air in the flat forming device, and the filling device fills the package into the blister. Then, it is sent to the flat sealing device, and the cover film is sealed with the formed film at a suitable temperature and pressure, and then the batch number is printed and the broken line is pressed by the type printing device, and finally the punching device is punched into a prescribed size. Product section.

Roll plate blister packaging machine

The roller plate type blister packaging machine is developed on the basis of a roller type and flat type blister packaging machine, that is, a flat type molding device is used for blow molding (positive pressure forming), and a roller type sealing device is sealed, and its The working principle is basically the same as the above two.
