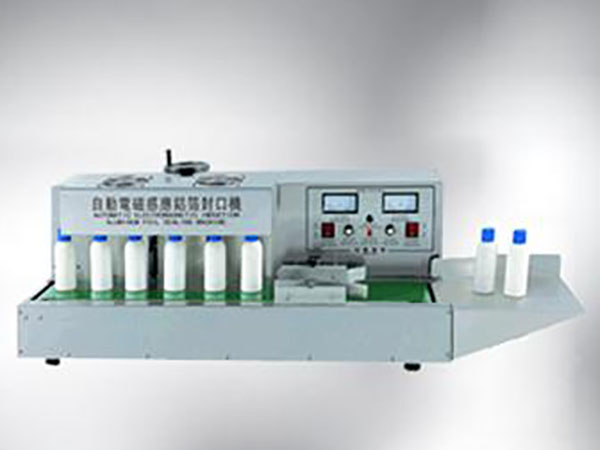

How Does The Desktop Aluminum Foil Continuous Band Sealer Operate?

The desktop aluminum foil continuous band sealer is a relatively advanced automatic sealing device on the market. It uses the electromagnetic induction sealing principle. The sealing speed is fast, the effect is good, and the operation is simple. How does the desktop aluminum foil sealing machine operate? The specific process is as follows.

1. Before starting the continuous band sealer, place the bottle to be sealed under the sealing box, turn the lifting wheel to make the gap between the bottom of the sealing box and the bottle cap about 1 ~ 2mm, and then press the start-stop switch to "start", and the conveyor belt starts to rotate , And then put several identical bottles on the conveyor belt to see if the bottles can pass under the sealing box. [Special attention: the gap between the bottle cap and the bottom of the sealing box is 1 ~ 2mm. It should not be too large or too small.

2. According to the conveying condition of the conveyor belt, the adjusting screw of the conveyor belt can be adjusted, so that the belt of the conveyor belt can reach the ideal tightness and offset position.

3. Adjust the left and right baffles of the guide plate in place. When the bottle is not placed in the middle position of the conveyor belt and passes the guide plate, the bottle is pushed to the middle position of the conveyor belt by the guide plate, so that the bottle can pass from the center position of the sealing box. To achieve a good continuous band sealer effect.

4. Before starting work, determine the required heating time according to the sealing diameter and the continuous band sealer effect to be achieved, and then adjust the speed knob to make the passage time of the bottle under the sealing box exactly coincide with the heating time required for the bottle mouth. Take a few more bottles to try to seal the bottle mouth. If the bottle sealing effect is not good, it means that the heating time is not enough and the conveyor speed needs to be slowed down. If the bottle can be sealed tightly, but the bottle mouth and the paper are roasted yellow (coke) due to the high temperature, it means that the heating time is too long and the speed of the conveyor belt needs to be adjusted (adjust the speed adjustment knob).

5. After completing the above steps, when the continuous band sealer effect of the sealed bottle is satisfactory [if the effect is not good, you need to readjust it], the equipment can be put into formal work.

6. When continuous band sealer shutdown is required, both the power switch and the start-stop switch must be turned off.
